Early Simple Machines Set

Spinning Tops

Exploring the effects of gearing, and balanced and unbalanced forces on the movement of an object.

30-45 min.
Beginner
Key Stage 1
spinning-tops-connect

Connect

5-10 Minutes

One day at the park Sam and Sara saw some other children playing with spinning tops. Their tops spun for a long time before falling over. Great fun! Sam and Sara thought about how to make some tops themselves and in no time they were spinning their own tops. But their tops didn’t spin for long and soon their fi ngers started to hurt from all the spinning. They needed a device that could make the spinning tops spin faster and better!

Can you help Sam and Sara build a device that can make the spinning tops spin?
Let’s find out!

spinning-tops-connect

Construct

10-15 Minutes

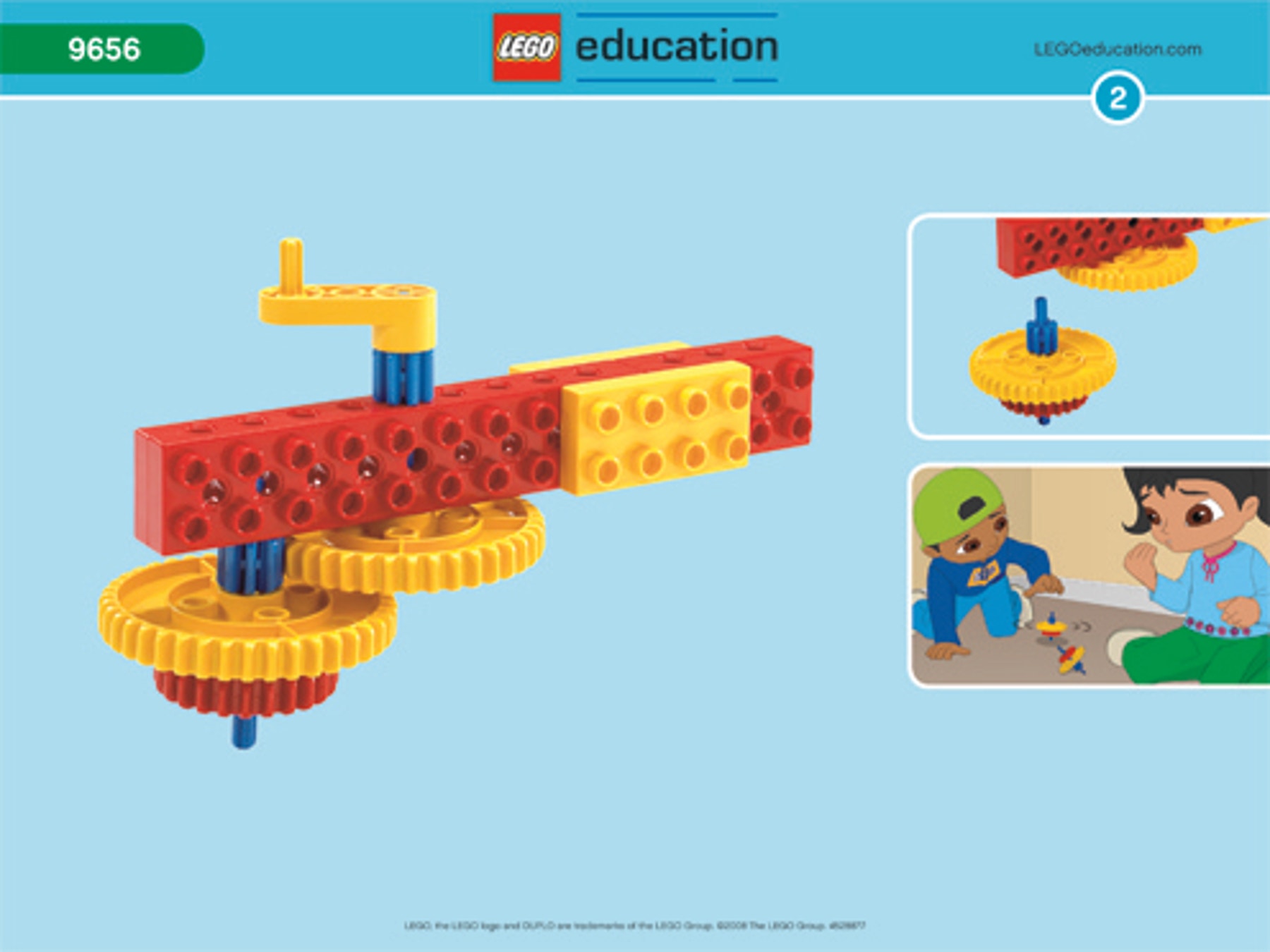

Build the launcher and the spinning top using building instructions no. 2.

spinning-tops-building-instructions-front

Hold the launcher and place the gear end of the launcher over the blue gear axle. The blue gear should mesh with the big yellow gear and spin as you turn the handle.

Tip:
Launching tops requires good coordination skills!
Try it yourself.

To launch the top, turn the handle and lift the launcher straight upwards.

two-spinning-tops-instruction

Idea:
It may be a good idea to let younger children play with the top and launcher before embarking on serious testing.

Contemplate

10-15 Minutes

Long or longer?

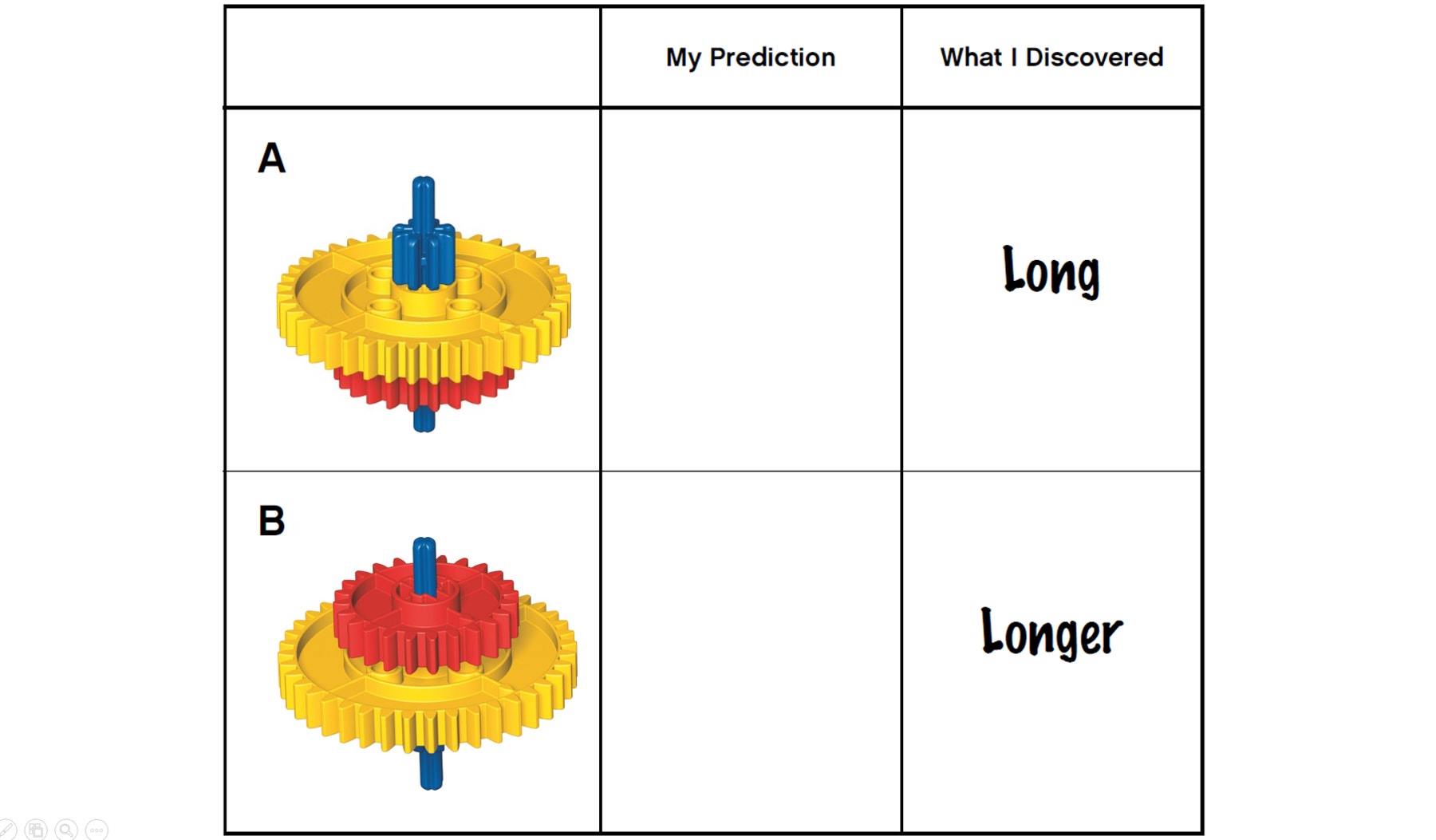

The top can work in two ways. The yellow gear of the launcher can mesh with both the blue and the red gears of the top. Find out which top will spin longest.

First, predict which top will spin for a long time and which top will spin even longer.
Write down your predictions using the words on the worksheet.

Next, test how long the tops will spin first using the blue 8-tooth gear and then the red 24-tooth gear.
Write down your findings using the words on the worksheet.

spinning-tops-table

Have the children reflect on their tests by asking questions such as:
What did you predict would happen and why?
Describe what happened.
Was this a fair test?
Did you turn the handle in tests A and B at the same speed? Did you test all the tops on the same surface?
Describe how the model works.

Tip:
To accurately time how long the tops spin, use a standard measuring timer.

Did you know?

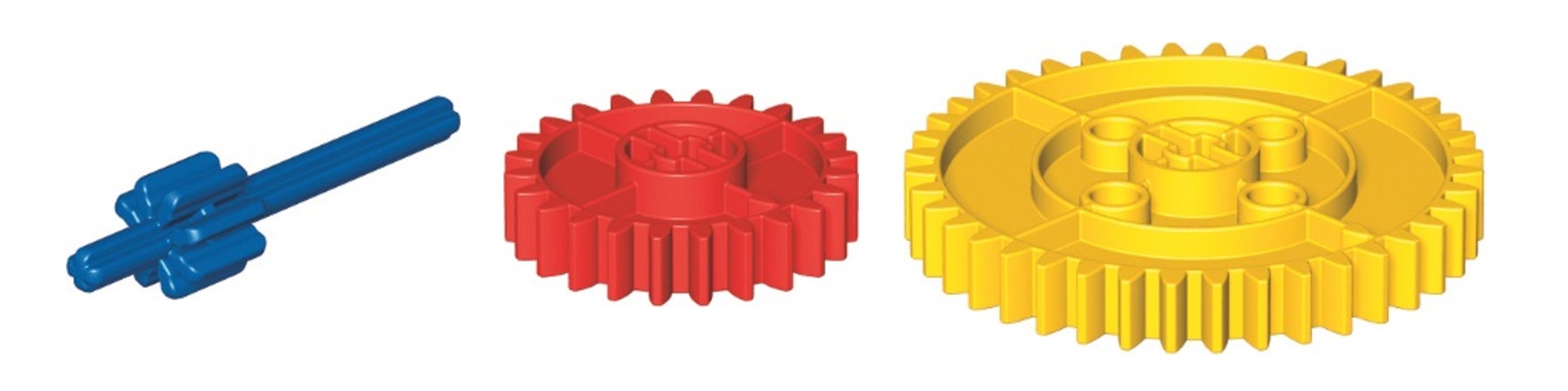

The blue gear has 8 teeth, the red has 24 teeth and the yellow gear has 40 teeth!

blue-red-yellow-gears

Continue

10-15 Minutes

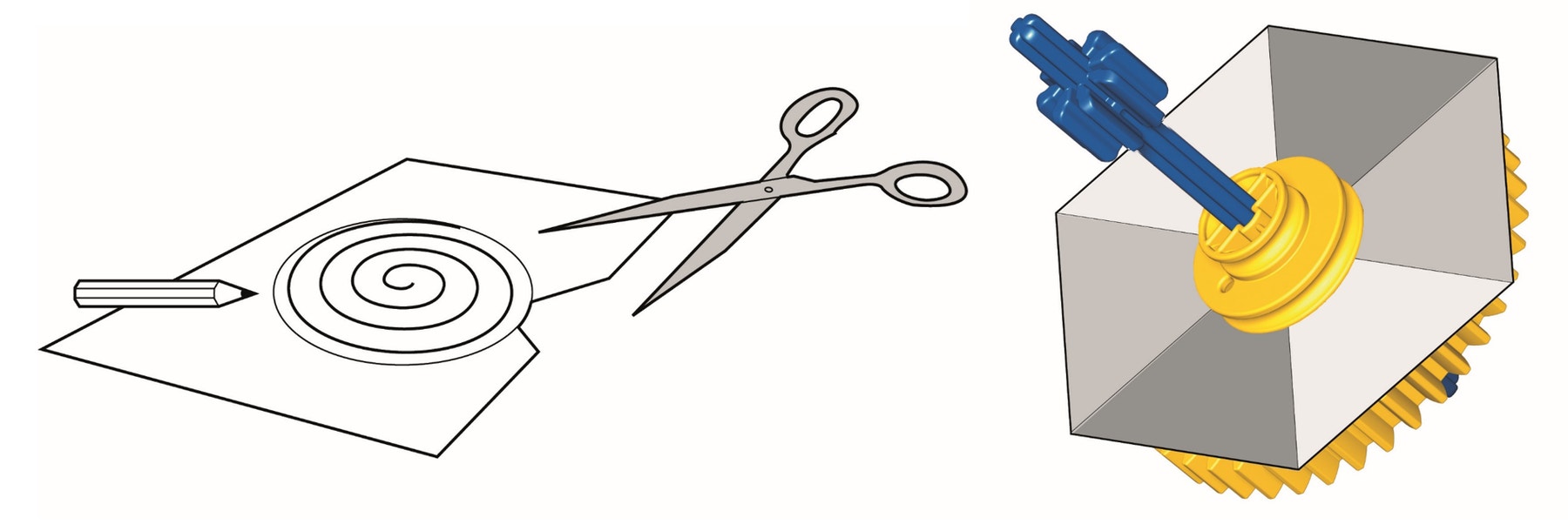

Can you design your own spinning top?

Design and make your own spinning tops.

spinning-top-design

Consider which materials and shapes would be best. Create amazing optical effects and tops for all sorts of games.

On the worksheet, draw your best spinning top design.

Teacher Support

Science
• Energy
• Fair testing
• Measuring
• Movement

Design and Technology
• Combining materials
• Evaluating
• Game design
• Gears

9656 Early Simple Machines Set (one set per two students is recommended)
Coloured pencils and markers
Paper
Scissors
Several square metres of smooth, flat floor space
Timer or clock

Key Science Curriculum
Scientific enquiry including investigating the effect of variables on the performance of simple machines, predicting and estimating the performance of simple machines. Careful observation, describing and presenting results, plus:
• Investigating gearing
• Investigating rotation

Key D & T Curriculum
Working with different mechanical and structural components to develop specific knowledge and understanding. Evaluating products against technical
criteria; developing design skills, plus:
• Designing mechanical toys
• Structures and stability

Pupil Material

Pupil Worksheet

Download to view and share the student worksheet.
