MINDSTORMS EV3 Core Set

Curved Move

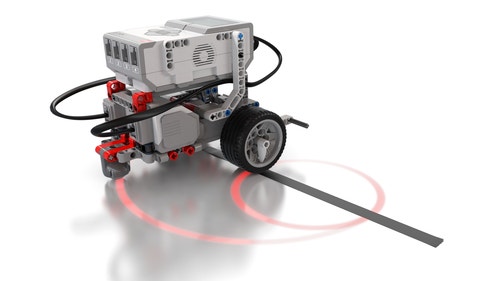

Use the Move Steering block to steer the Driving Base.

0-30 min
Beginner
Years 7-9 or Key Stage 3
curved-move-connect

Build It

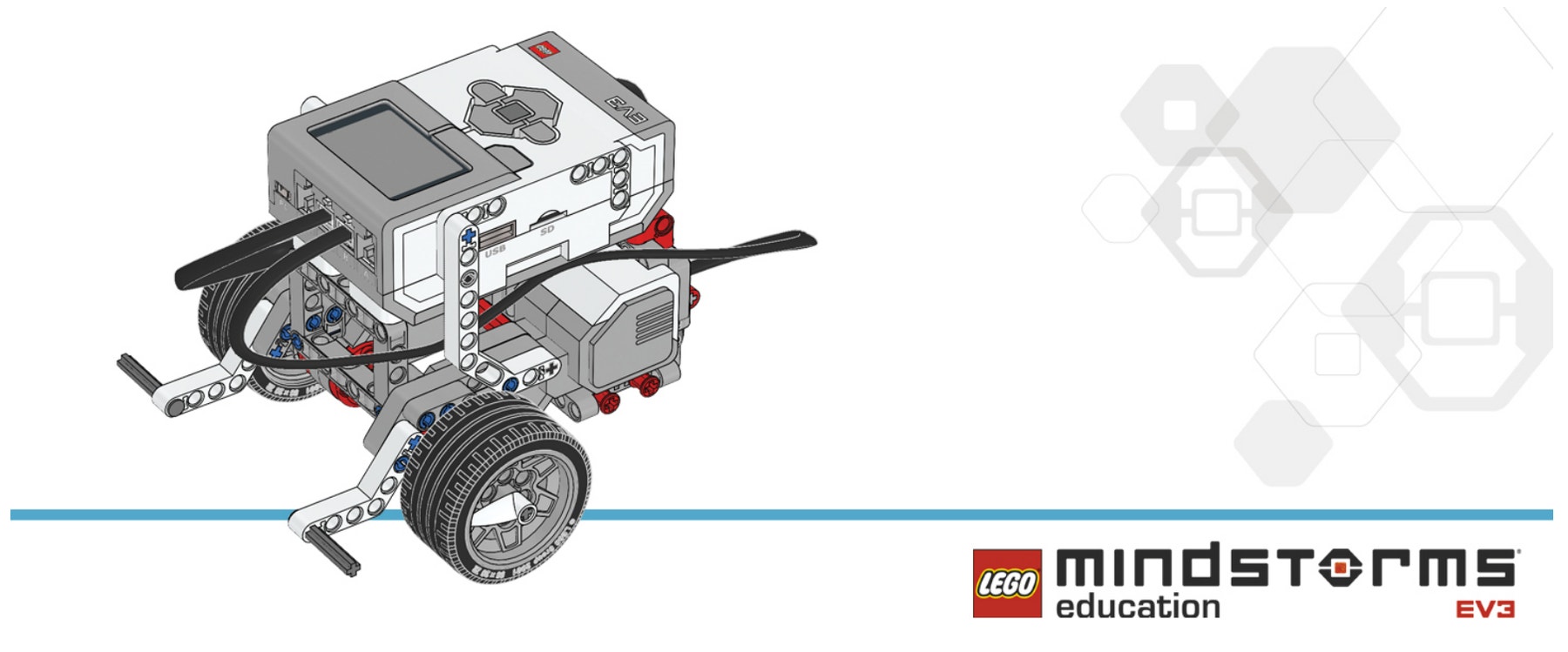

Build the Driving Base model.

ev3-robot-driving-base

Test It

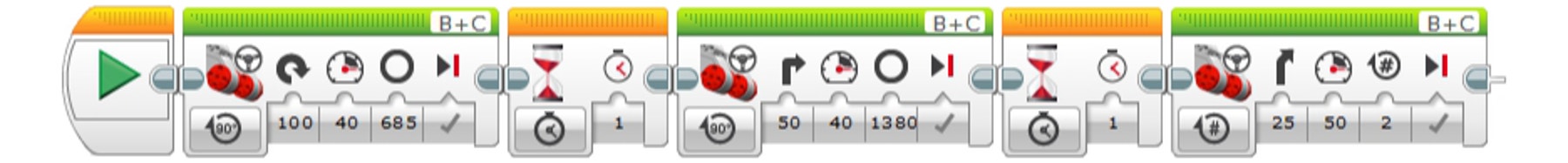

Recreate the program shown, then download and run to test.

Hints
Use the Wheel Pointers to help understand the relationship between motor and Driving Base rotation.
Students often assume a 90 degrees motor turn is equal to a 90 degree driving base turn.
Note that the distance between the driving wheels will affect the turning radius.

curved-move

Program Summary

Start
Move Steering – Degrees[685], Steering[100]
Wait – Time[1 s]
Move Steering – Degrees[1380], Steering[50]
Wait – Time[1 s]
Move Steering – Rotations[2], Steering[25]

Modify It

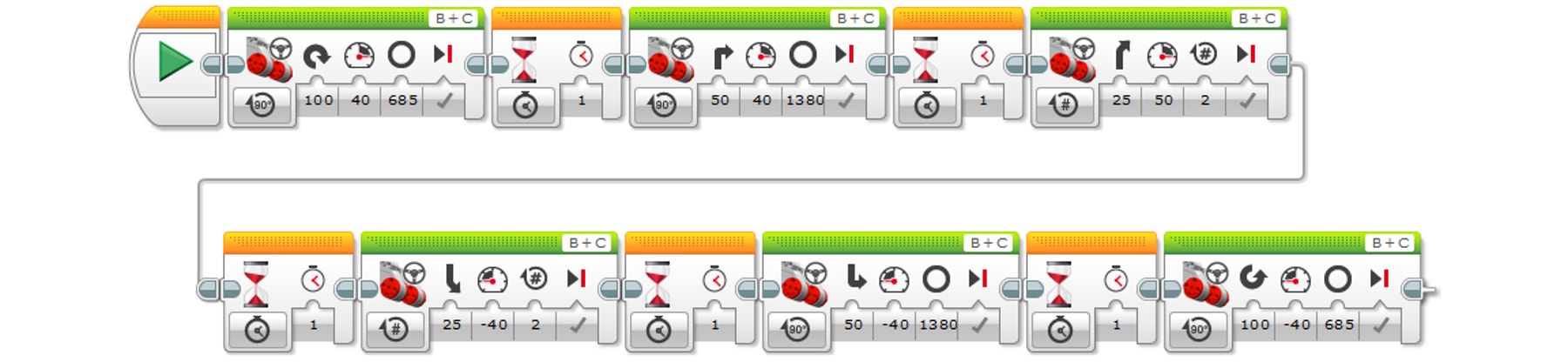

Now it’s your turn! Add three more Move Steering blocks to your program so that it makes the Driving Base return to its starting position.

curved-move2

What is next?

ModifyIt_0

Teacher Support

Students will:
Use the Move Steering block to steer the Driving Base.

LEGO® MINDSTORMS Education EV3 Core Set
EV3 Software or Programming App
