Renewable Energy Add-on Set

Hand Generator

Explore the conversion of mechanical energy into electrical energy using a hand-operated generator.

45-90 min.
Advanced
Years 7-9 or Key Stage 3

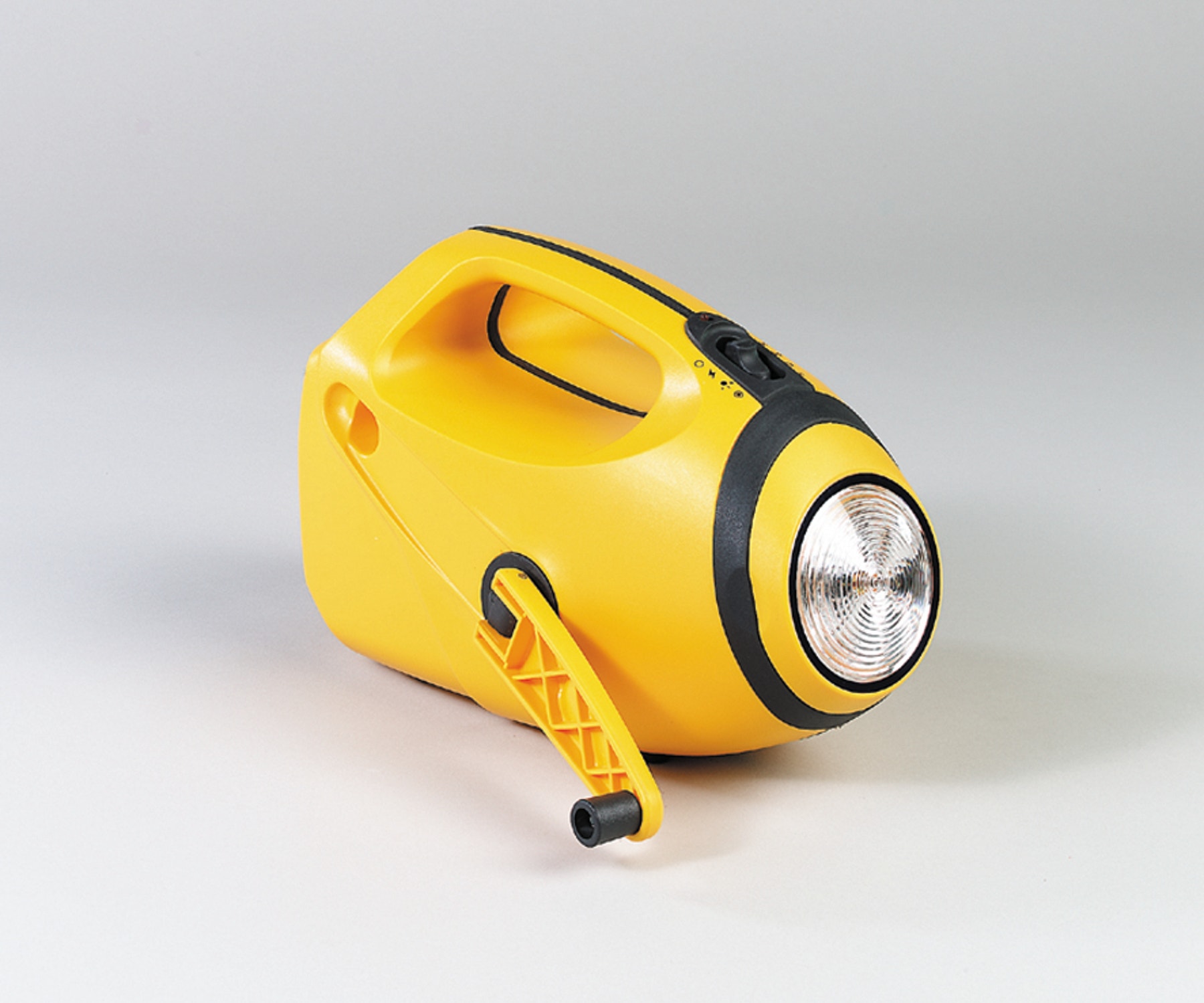

hand-generator-connect

Connect

(5-10 Minutes)

Generators have the ability to convert mechanical energy into electrical energy. The human body can operate a generator by turning the handle. The faster we turn the handle the more electricity we generate.

Now build the Hand Generator and investigate its ability to generate power.

hand-generator-connect

Construct

(20-25 Minutes)

Build the Hand Generator and the Joule Jeep
(Building Instruction booklet 1A and 1B, to page 15, step 16).

Test the model’s functionality. Loosening bushings can reduce friction. Connect the plugs properly by pressing them firmly together. Make sure to return the joules (J) reading to zero before testing.

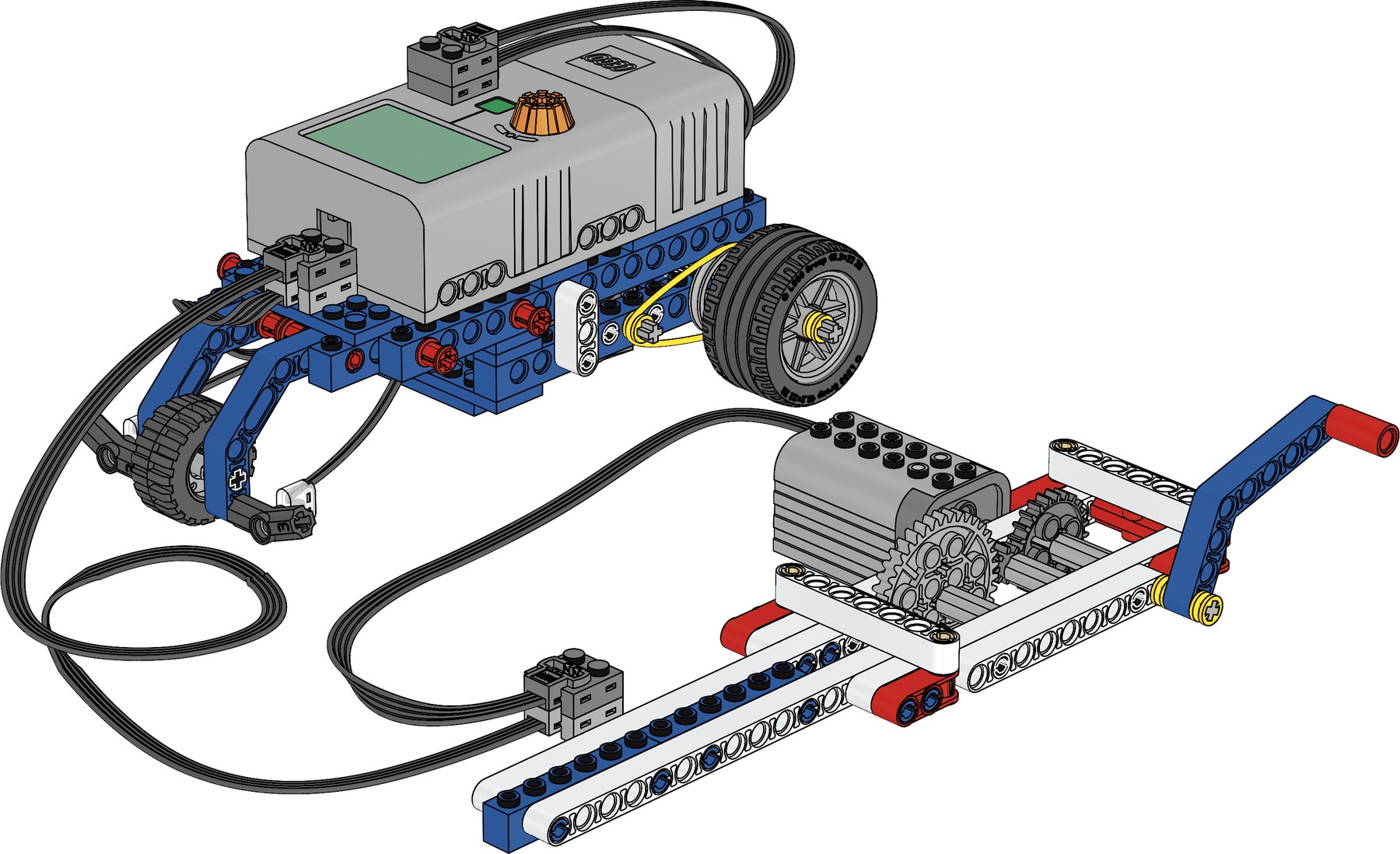

hand-generator

Test Setting

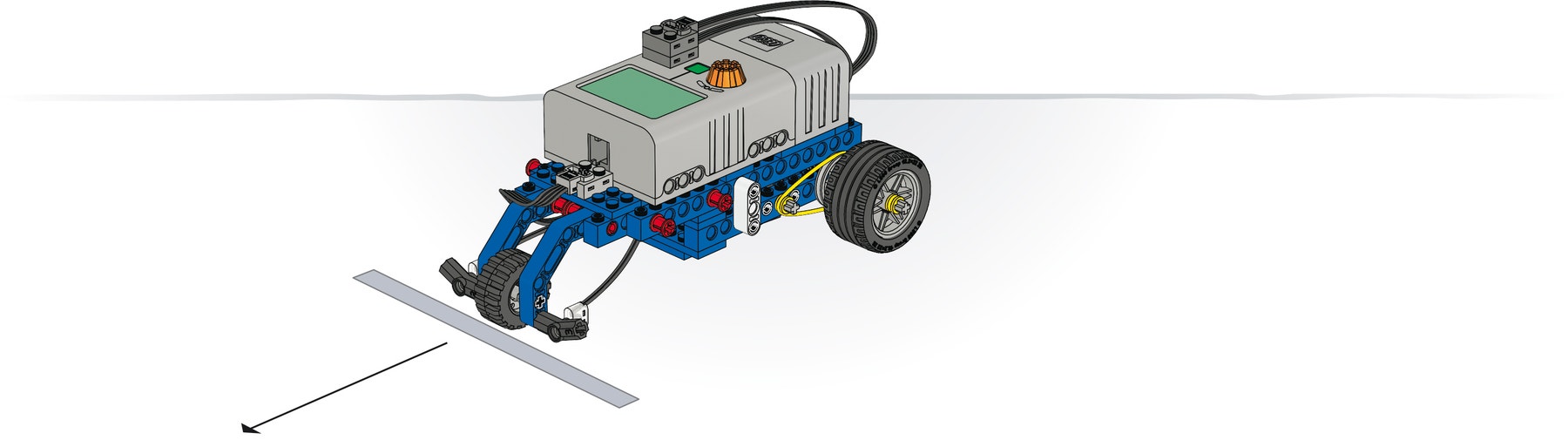

Mark a start line for your Joule Jeep

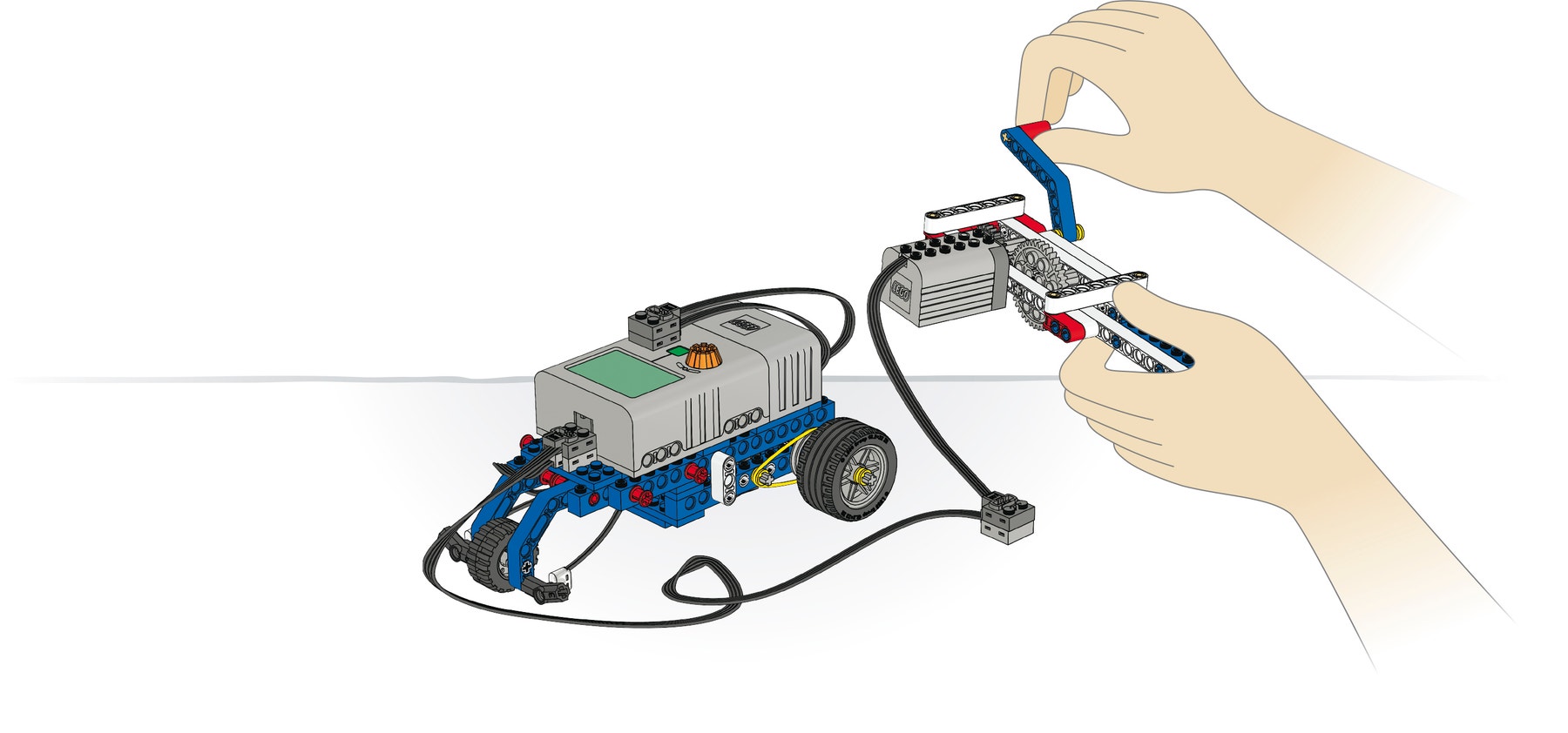

hand-generator-setup
joule-jeep-line-mark

Contemplate

(20-25 Minutes)

Turn and go
The task requires students to investigate how many joules (J) the Hand Generator can accumulate after a time period of 60 seconds and see how far these joules can power the Joule Jeep.

hand-generator

First, have students graph their prediction in a system of coordinates showing how many joules they will accumulate after a time period of 60 seconds.

Then, have students investigate how many joules they can accumulate by turning the handle of the Hand Generator during a period of 60 seconds. Have them read and record their findings at 10 second intervals and have them graph their findings in the same system of coordinates as their prediction.

Next, have students find out how far the Joule Jeep can run on the amount of accumulated joules.

Findings will vary; students will see that the distance travelled by the Joule Jeep will vary depending on the amount of accumulated joules.

Hint
Reset the Energy Meter before each investigation.

Have students reflect on their investigations by asking questions such as:
• Which factors did you base your predictions on?
• Can you explain your findings?
• Can you identify a pattern or trend in the findings?

For a given time, the amount of accumulated joules is proportional to the speed of turning the handle.
• How did you make sure that your findings were scientifically valid?

Students need to investigate several times to make sure findings are consistent and that the Joule Jeep starts and runs from the same spot and on the same track surface.

Did you know?
An idler gear changes the direction of rotation, but does not affect the output speed.

Continue

(25-30 Minutes)

Gearing up
(Building Instruction booklet 1A and 1B, to page 16 step 1).

The task requires students to investigate how many joules (J) the rebuilt Hand Generator can accumulate after a time period of 60 seconds and then see how far these joules can power the Joule Jeep.

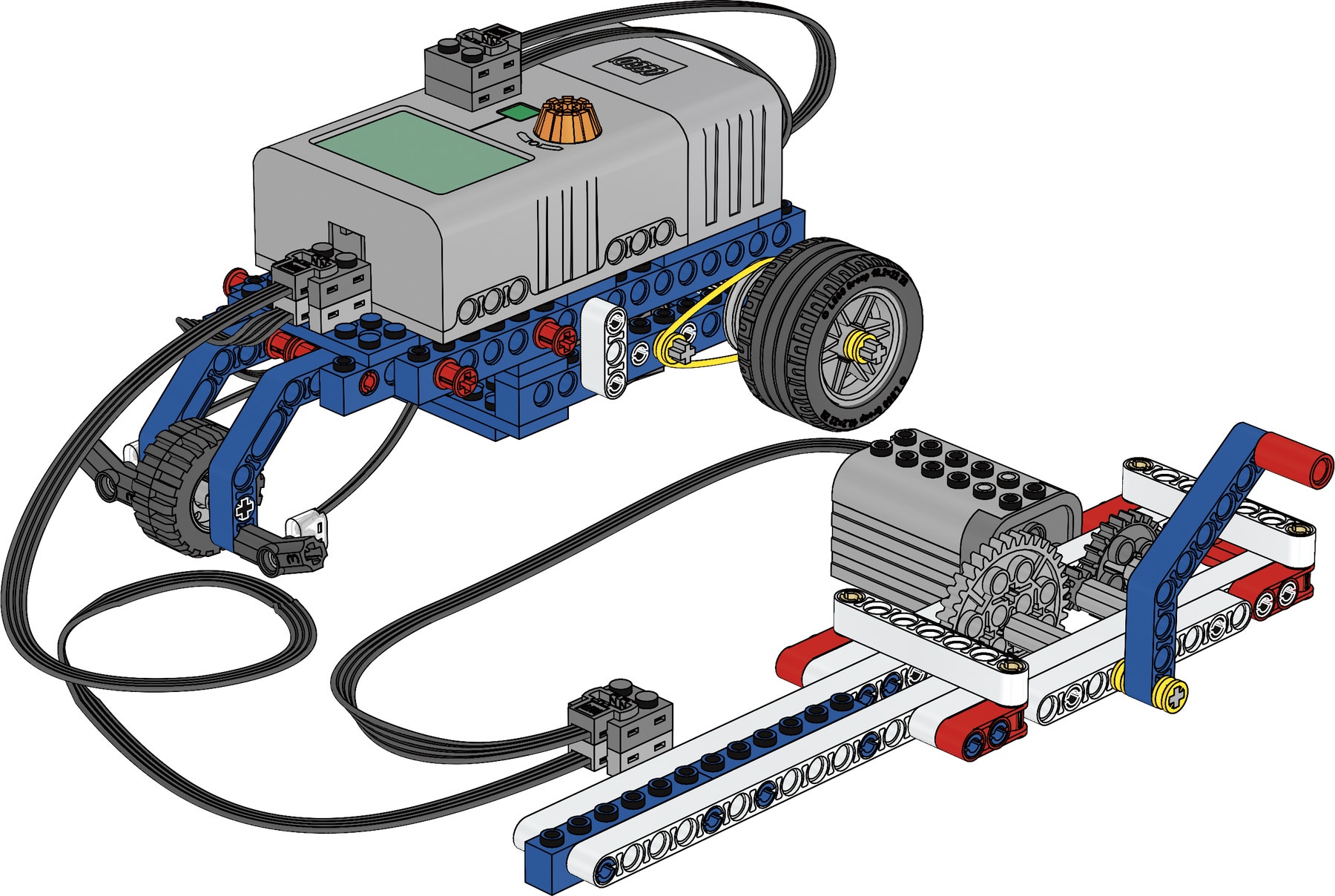

hand-generator-gearing-up

First, have students rebuild the Hand Generator’s gearing. Then, based on their knowledge of specific characteristics of gears, have them graph their prediction in a system of coordinates showing how many joules they will be able to accumulate over a time period of 60 seconds.

Then, have students investigate how many joules they can accumulate by turning the handle of the Hand Generator during a period of 60 seconds. Have them read and record their findings at 10 second intervals and have them graph their findings in the same system of coordinates as their prediction.

Next, have students find out how far the Joule Jeep can run on the amount of accumulated joules.

Findings will vary, but a significant increase in the amount of joules accumulated will be seen. Ideally, students should predict a 60% increase in the amount of joules accumulated. How far the Joule Jeep will travel will vary depending on the amount of accumulated joules.

Hint
Reset the Energy Meter before each investigation.

Identifying Variables
Have students identify and write down at least three variables, explaining clearly how these affect the efficiency of the Hand Generator and the Joule Jeep.

Some factors could include the effects of changing the gearing, the length of the handle, the speed with which the handle is turned, the strength and stamina of the person turning the handle and the structural stability of the Hand Generator. The Joule Jeep’s efficiency is influenced by its weight, gearing, friction and the track surface.

Did you know?
The unit for the energy producing potential in food is calories (cal). One calorie is generally assumed to be 4.2 J.

Teacher Support

Students will explore the concepts of:

Science
• Energy accumulation
• Energy consumption
• Energy conversion
• Scientific investigation

Design and technology
• Improvements through technological design
• Assembling components
• Evaluating
• Using mechanisms – gears

Engineering
• Engineering design
• Identifying energy
• Investigating and evaluating variables

Mathematics
• Graphing
• Measuring distance
• Reading measurements
• Timing

9686 Simple & Powered Machines Set (one set per two students is recommended)
9688 Renewable Energy Add-on Set
Graph paper
Ruler or measuring tape
Stopwatch or timer

Science curriculum:
• Consider evidence from observations, and experiment using ‘distance travelled’ as a measure of performance
• Transfer, transformation, storage and dissipation of energy with reference to conversion of kinetic energy to electrical energy

Design and technology curriculum:
• Construct with components
• Investigate and predict effect of gearing systems on generator performance

Mathematics curriculum:
• Present investigation and prediction data graphically
• Applications of ratio and proportion

Pupil Material

Student Worksheet

Download to view and share the student worksheet.
