Simple & Powered Machines Set

Sweeper

Explore the scientific concepts of bevel gears, gearing up, pulleys, safety systems, distance and friction.

45-90 min.
Intermed.
Key Stage 3
sweeper-connect

Connect

(5-10 Minutes)

The path is covered in rubbish and leaves. It looks terrible and could be dangerous if someone slips on it! Now Jack and Jill have the job of cleaning it up, but they are not keen on their brooms and would much rather play on their cart.

Zog the Dog tries to help out but he’s not very good at it.

Suddenly they get an idea about combining the broom with the cart, but they are not sure exactly how to make it work.

How can you combine pushing a cart with cleaning a path?
Let’s find out!

sweeper-connect

Construct

(20-25 Minutes)

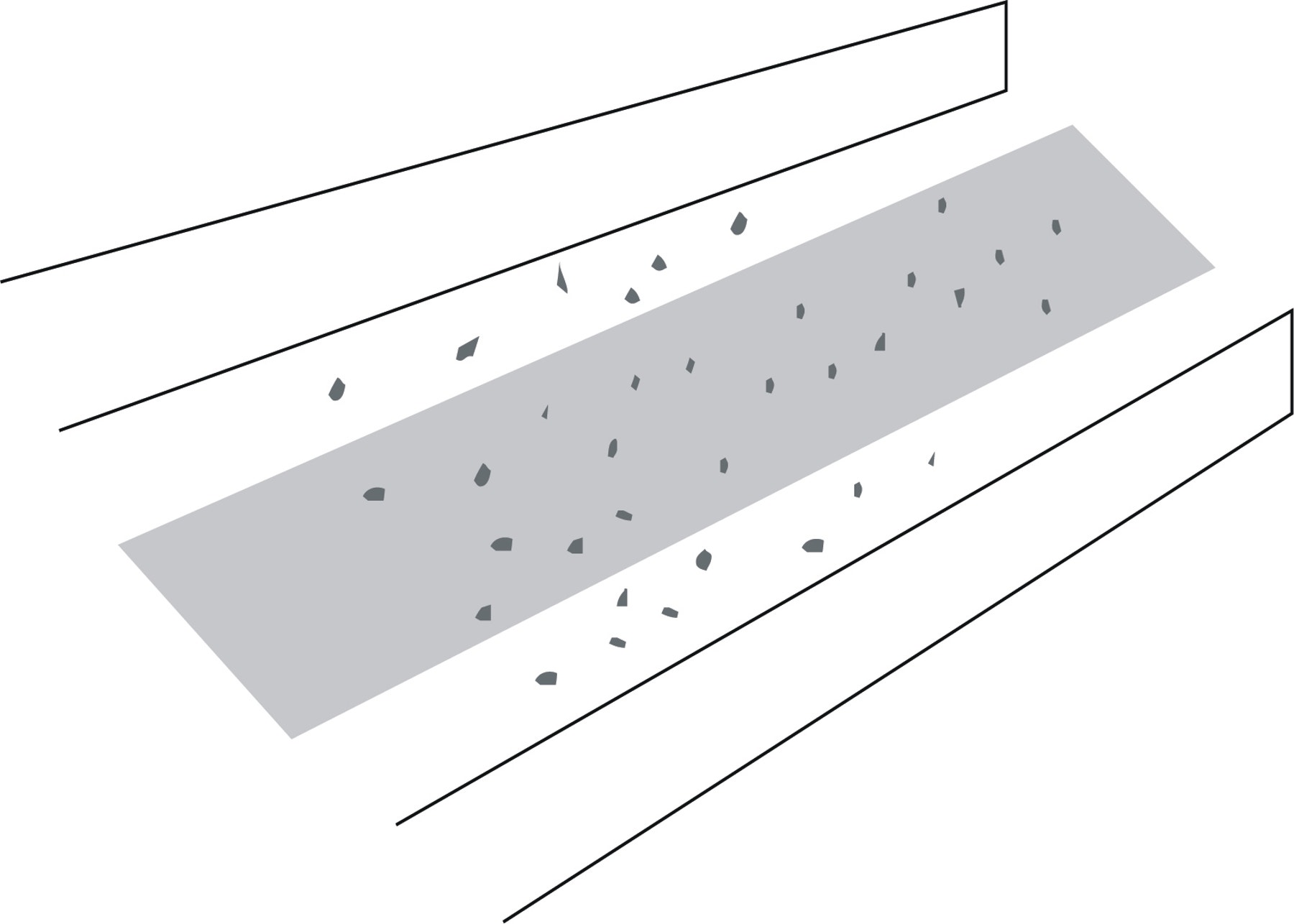

Make the test park
Use a smooth tabletop or floor, and place your crumb-proof wall or box on it.

Evenly spread out strips of crumpled paper scraps across a 10 cm wide and 60 cm long section of your park. This is the path covered in litter.

Leave plenty of room on either side of the path for the scraps to fly!

sweeper-path

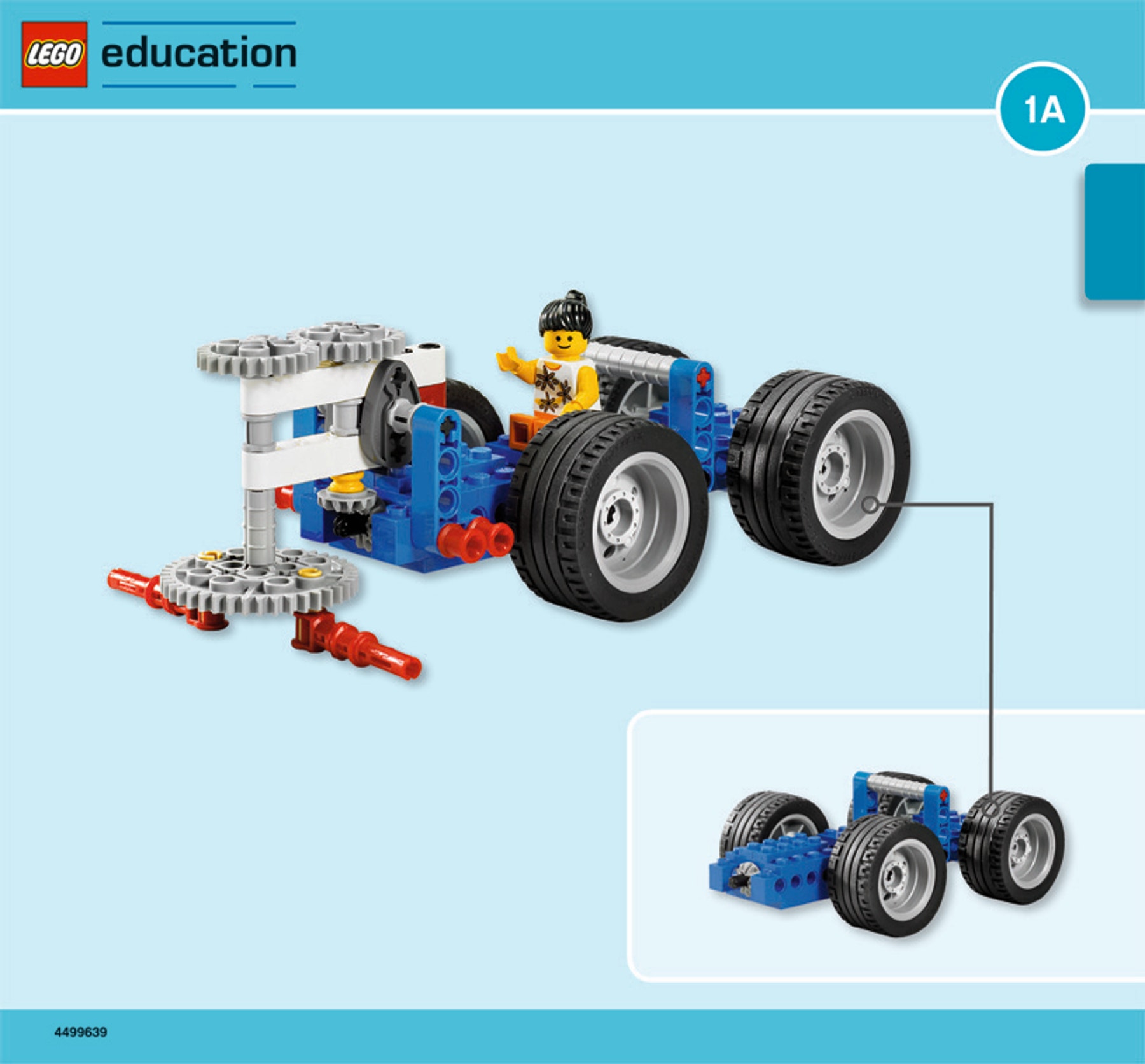

Build the Sweeper
(all of book 1A and book 1B to page 8, step 11).

sweeper-building-instructions-front-page

Test that it runs smoothly
Push it gently across the table. The spinner should spin freely without hitting the frame of the cart and the Sweeper ‘blades’ should open out and spin without touching the table.

sweeper-hand

Contemplate

(20-25 Minutes)

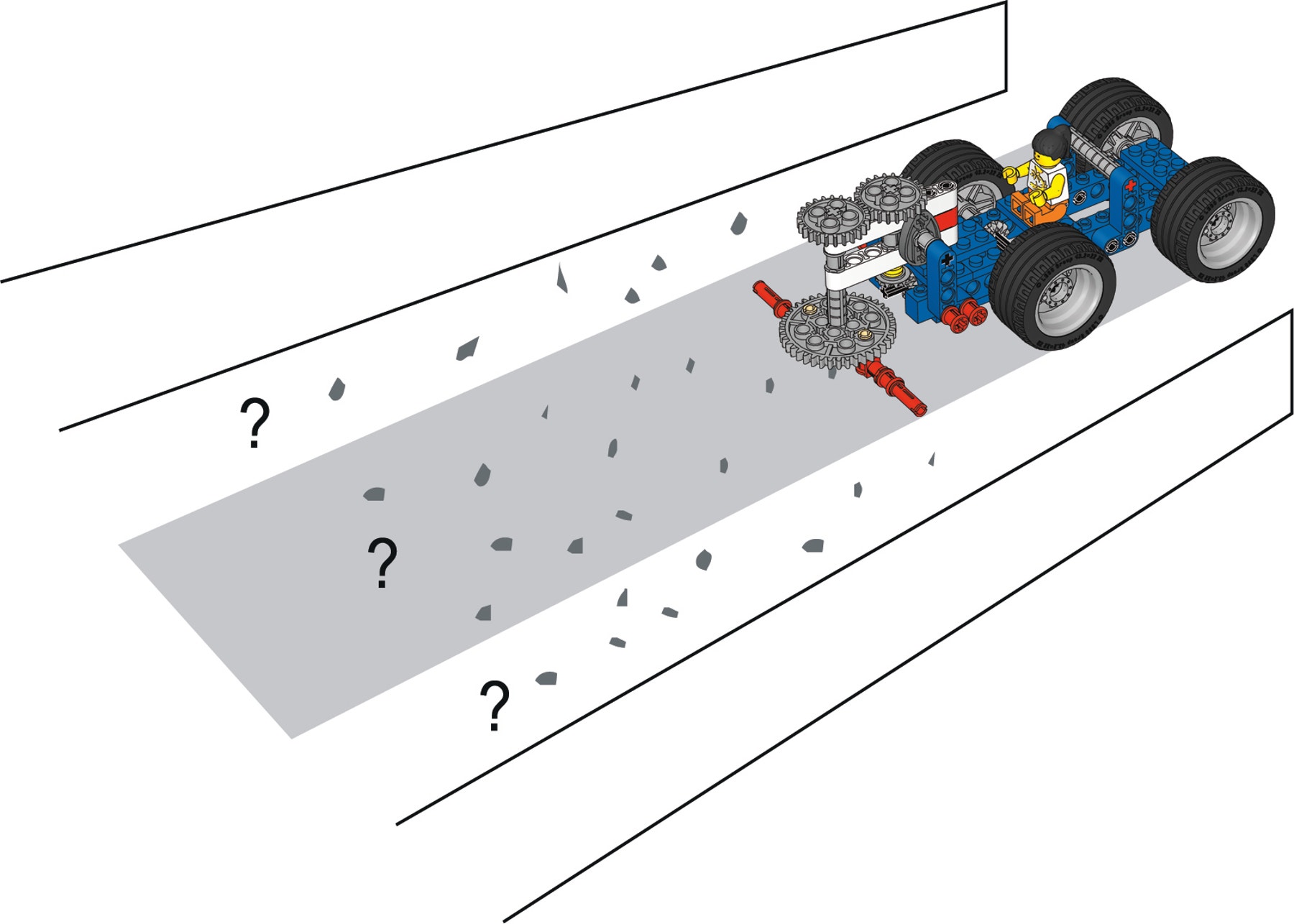

How well does it sweep?
Push it along the dirty path. How much of the scraps did you sweep aside? A quarter? Half?

What problems are there with this design? Estimate the amount swept aside compared to what is left on the strip.

It is not a fast sweeper and it doesn’t actually pick up the scraps!

Did you know?
All the gears with regular teeth, like the big gear, are called spur gears.

sweeper-path-model

What is the gearing of the Sweeper?
Push the Sweeper along so the cart’s wheels turn once. How many times does the Sweeper head turn? Can you explain?

The Sweeper head turns once. The gearing is 1:1. All the bevel and spur gears that mesh with each other are the same size. So there is no change in speed.

Tip:
What do the bevel gears do? They turn the direction of movement through 90°. They send moving energy around corners!

sweeper-ninety-degree-gearing

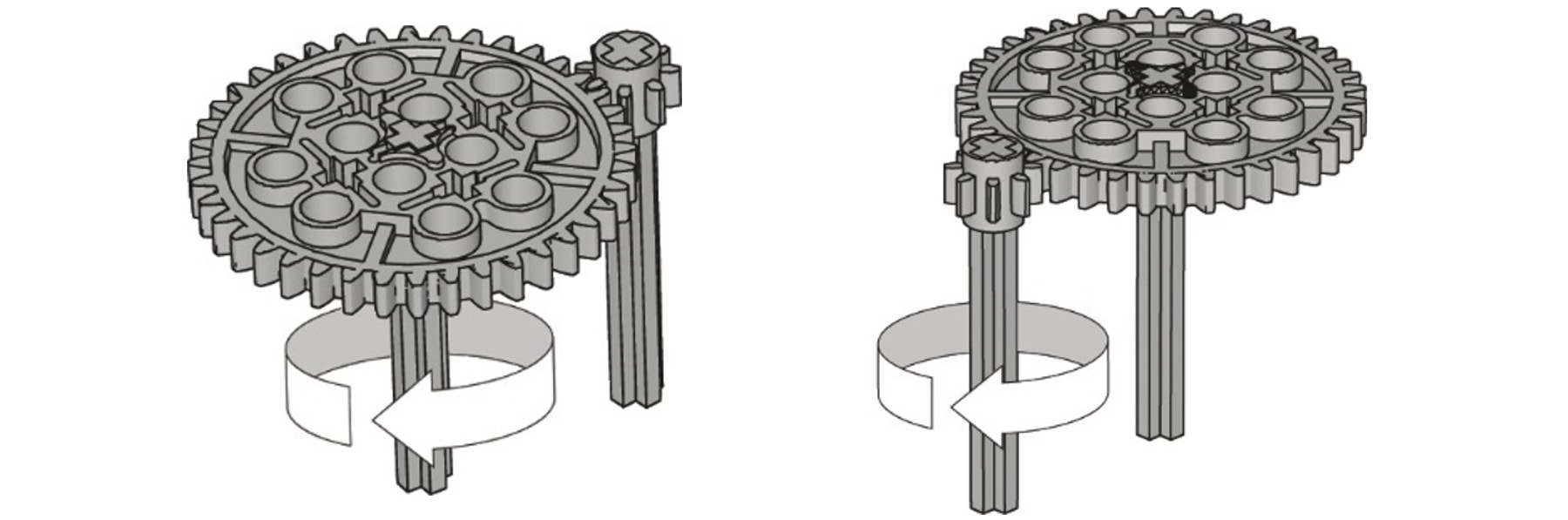

How can we make it sweep faster?
Try different combinations of drive gears (step 12, step 13).

Step 12 makes the sweeper head far too slow, step 13 makes it 5 times as fast. Note the 40-tooth gear driving the 8-tooth gear!

sweeper-gearing-up-down

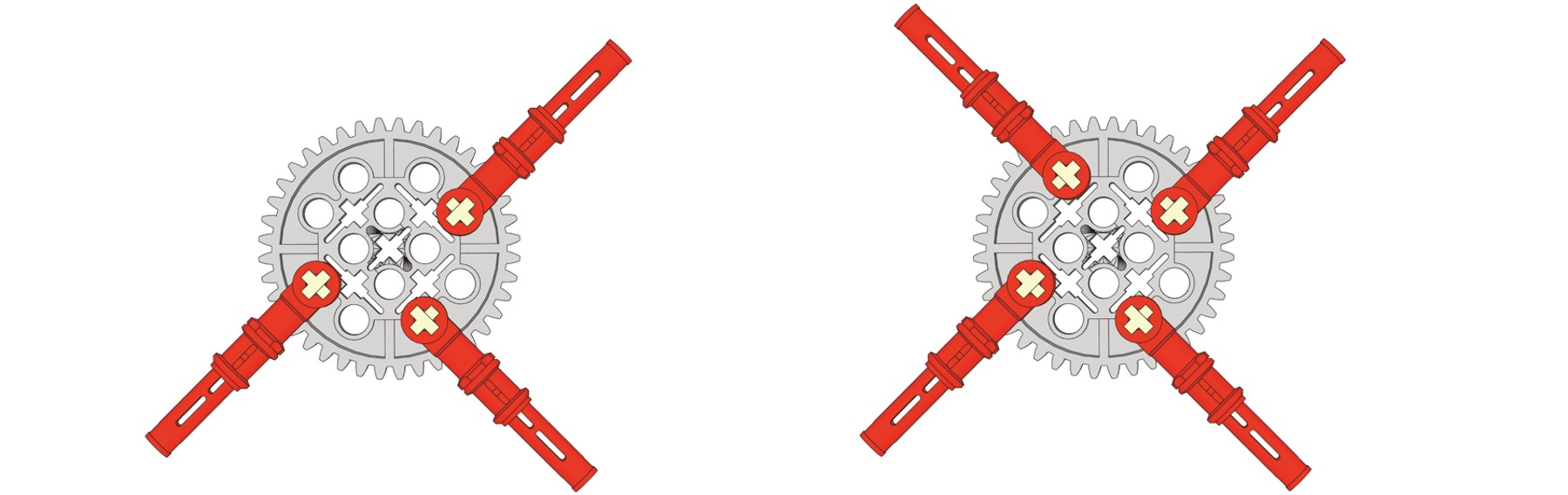

Jack and Jill would like to finish the job as quickly as possible so no-one will fall over in the leaves and hurt themselves. To help them, try adding more ‘blades’ to the Sweeper head (step 14).

Three blades make it unbalanced and even worse than 2 blades. Four blades is better, and in balance.

sweeper-gear-with-three-four-red-connector-pegs

Danger!
Push the Sweeper and hold the Sweeper head. What happens and what problems could this lead to?

The wheels may lock and the gears ‘jump’. In real life any items getting stuck in the Sweeper may overload the machine or break the gears.

Continue

(25-30 Minutes)

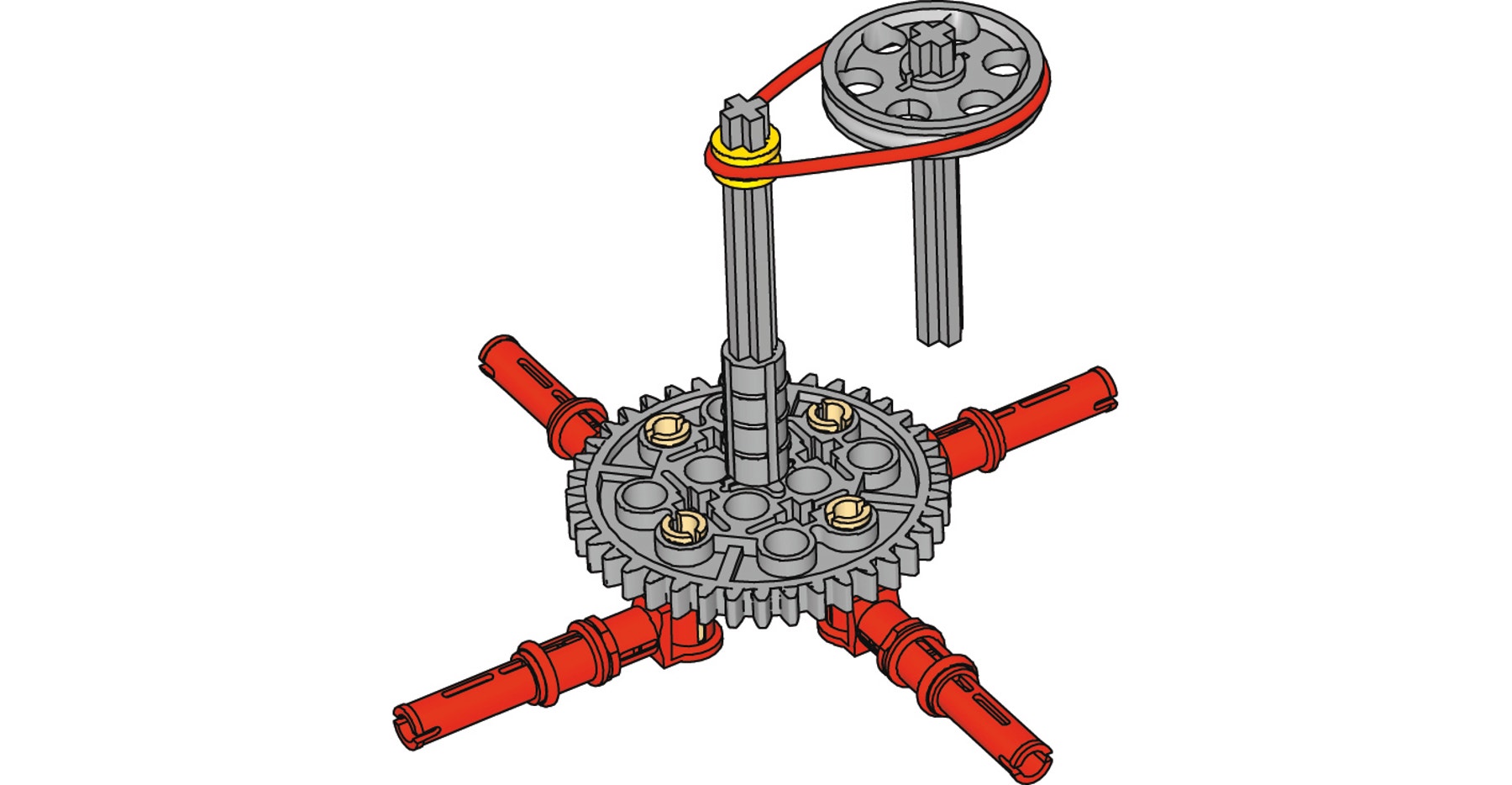

A Safer Sweeper
Rebuild the model to be driven by pulley belts. Try out different pulley systems. Predict and test how fast they will spin and how well they will sweep.

The Sweeper head usually rotates more quickly. The bigger the driver pulley, the faster the rotation. It is harder to push though as there is more friction on the axles.

Push the Sweeper and hold the Sweeper head again. What happens? What are the pros and cons?

The driving band slips.

Good points:
The Sweeper will stop if something jams in it. It could be safer for the operator too.

Bad points:
It takes more energy to push.

sweeper-gear-with-pulley

A Dirt-Collector
Can you work out a way in which not just to remove the rubbish from the path, but also collect it?

Teacher Support

Students will explore the concept of:

Design and technology
• Using mechanisms – bevel gears, gearing up, pulleys
• Testing before making improvements
• Safety systems

Science
• Measuring distance
• Friction
• Scientific investigations

9686 Simple & Powered Machines Set (one set per two students is recommended)
A large cardboard box or low card wall to stop flying trash, approx. 60 x 40 (≈ 24 x 16 in) is ideal
For rubbish: use crumpled scraps of paper, LEGO connector pegs, bushings, crushed real leaves or the like
