Simple & Powered Machines Set

Windmill

Explore the scientific concepts of forces and motion, renewable energy, energy capture, storage and use.

45-90 min.
Intermed.
Key Stage 3
windmill-connect

Connect

(5-10 Minutes)

Jack and Jill have found a huge, but heavy treasure chest buried near an old mine. It is really heavy and though they try as hard as they can, they can’t pull it out of the hole.

The old Windmill just nearby once used to lift water out of the mine and they are wondering if it can be of any help to them.

Zog the Dog has done a very good job helping them to dig out the treasure chest so he is pretty tired too. He walks away from Jack and Jill to rest a bit and suddenl finds a long piece of rope. He runs back to the two kids to suggest that they take him for a walk on his new “lead”.

Jack has once seen a film where a mill was used to lift up something and seeing the rope he immediately tells Jill about his idea. Now they know they can figure out how to get the treasure out of the hole!

How can you use a Windmill and a rope to lift a heavy load?
Let’s find out!

windmill-connect

Construct

(20-25 Minutes)

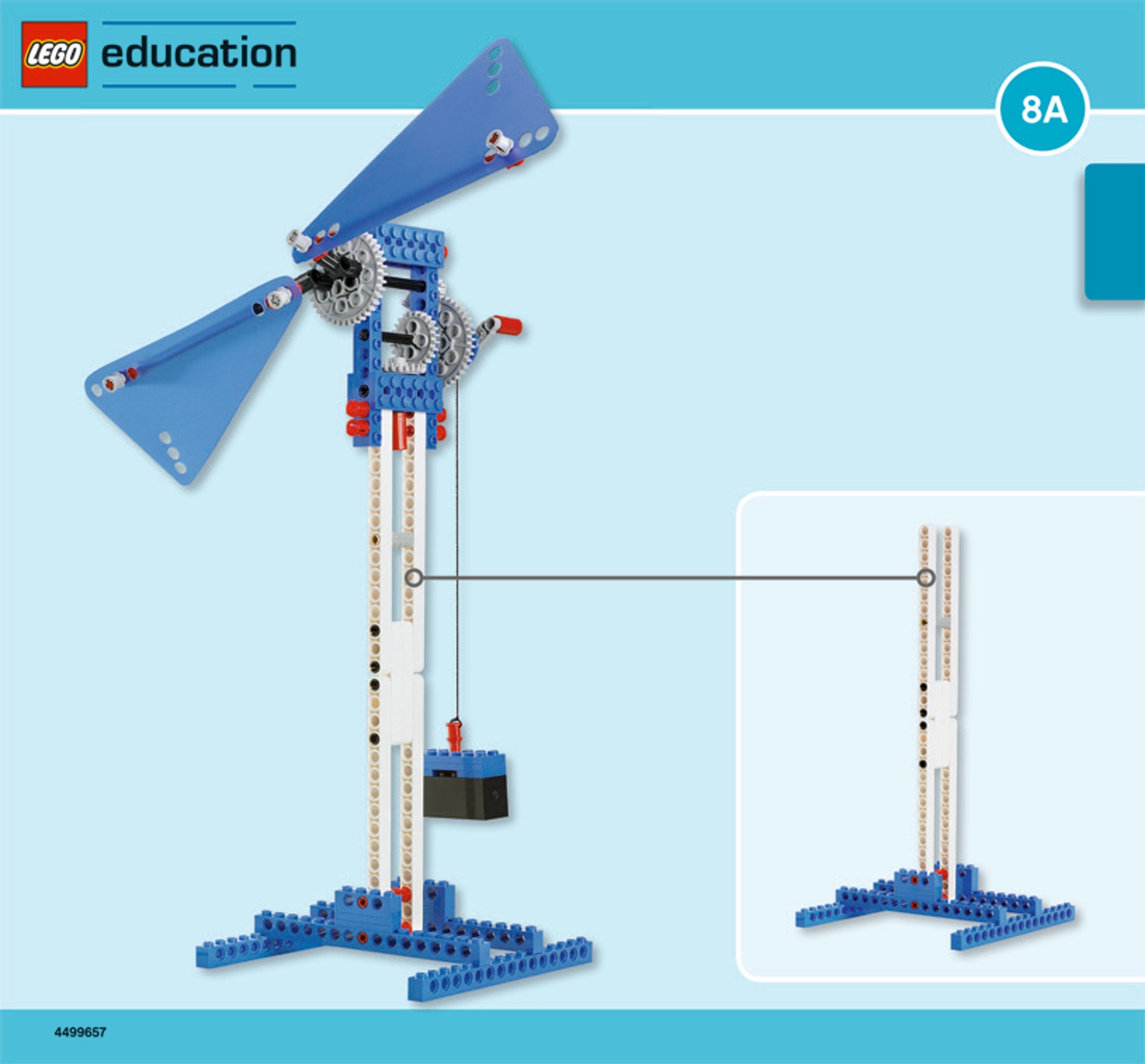

Build the Windmill
(all of book 8A and book 8B to page 12, step 17).

windmill-building-instructions-front-page

Spin the mill by hand. Is it running smoothly?
If it feels stiff to turn, loosen the axle bushings and make sure all other elements
fit tightly together

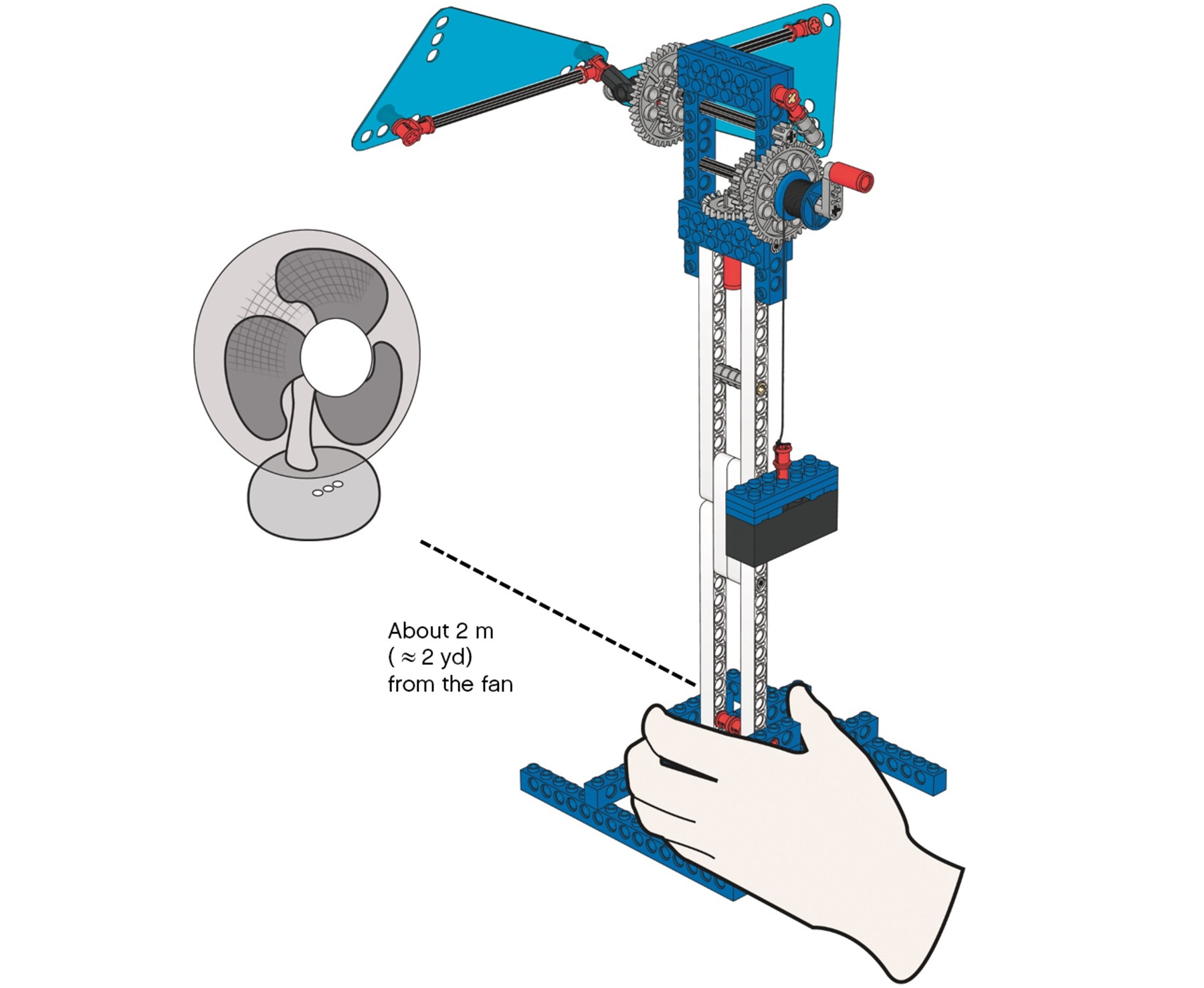

Setting up the Windmill
NB. You will need to build one basic model in the start-up phase to help set up the test zone.

Position the fan on the floor near a power outlet

Place the model about 2 m away

Choose a power setting, and move themodel back and forth to find a distancewhere the wind speed is JUST SUFFICIENT to lift the weight brick, slowly

KEEP THIS POWER SETTING FOR ALL TESTS (until you want to test the effect of different wind speeds, of course)

Make a long line (e.g. with tape) in front of the Windmill. This is the test zone (where it is safe), and behind the line several groups can test several mills at the same time.
Check that all the Windmills are subject to the same amount of wind

windmill-fan

Contemplate

(20-25 minutes)

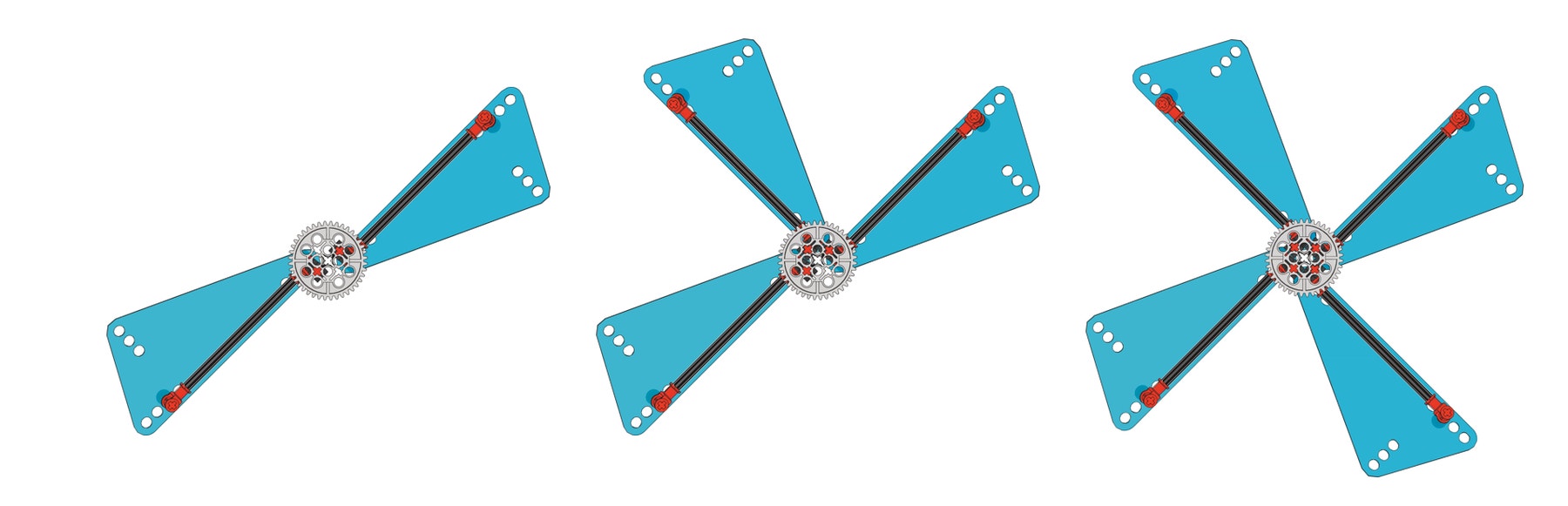

What is the best number of sails to use?
Predict and test which combination will lift up the treasure chest (weight brick) most quickly.
Can you explain why?

Example 3 is best. It has the most area in which to catch the wind energy.

Surprise!
Example 2 with the sails off-centre is usually the worst. It is too unbalanced to work efficiently even though it has more area than Example 1 with just two sails.

Idea:
Does shape matter? If you have time, try making sails of different shaped pieces of card, but with the same area as that used in your models.

NB.
Each sail has an area of approx. 40 cm^2.

windmill-sails

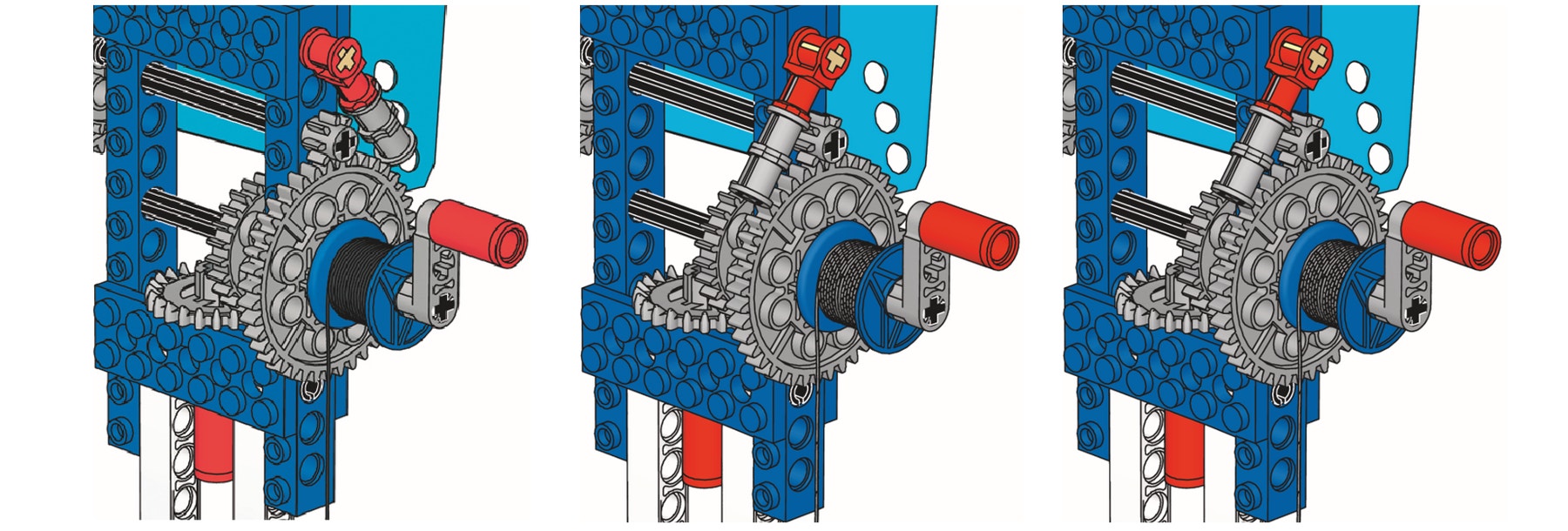

What does the ratchet do when:
The load is being lifted up and the wind stops?
The mill stops but the ratchet stops the heavy load from falling. A good safety feature.

The wind is blowing and you flip the ratchet to this position?
The mill stalls. The ‘forces are opposite’.

The load is up, the wind stops, and you flip the ratchet to this position?
It will become a fan powered by the energy stored in the falling load. You get the wind back again!

windmill-ratchet

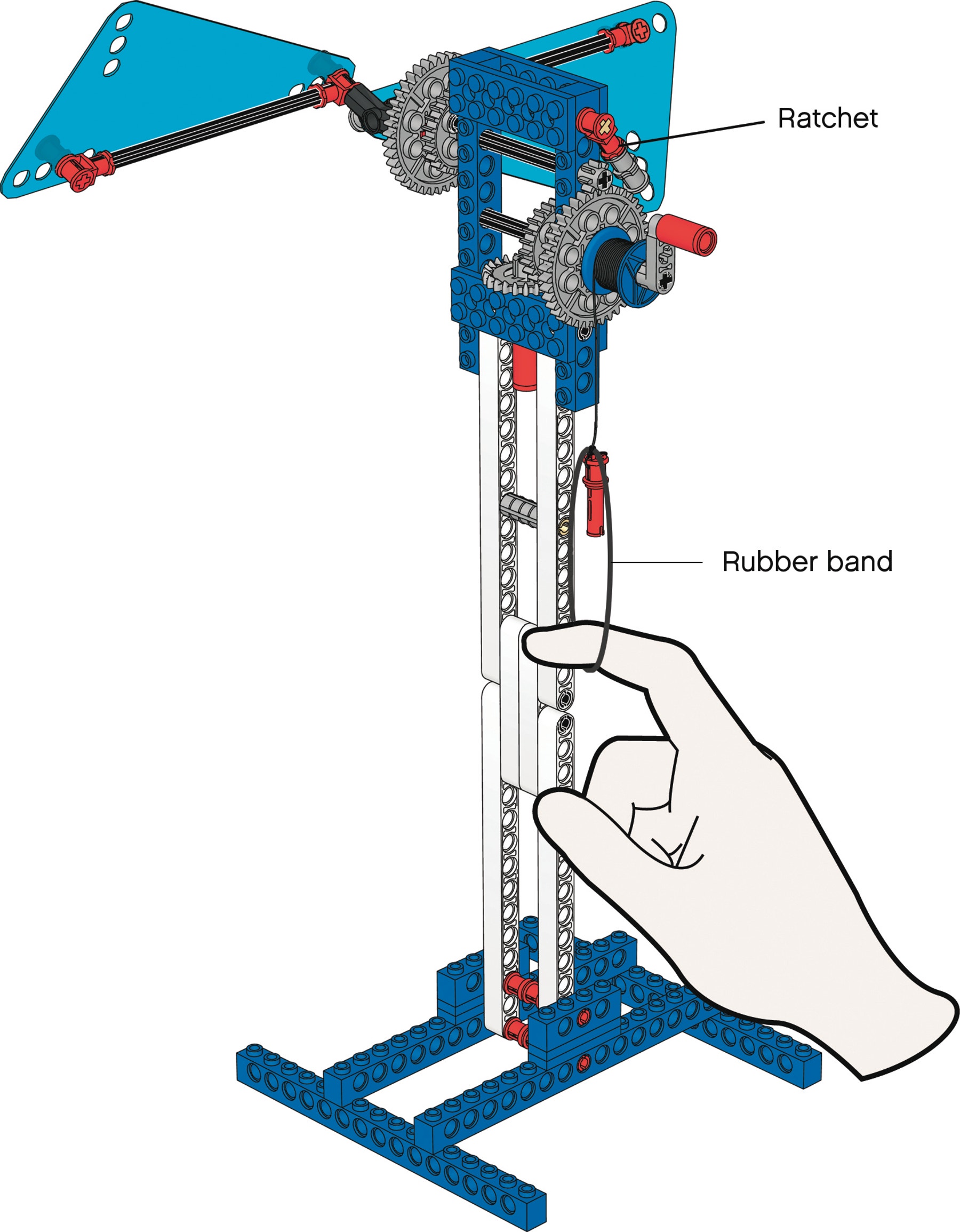

Rubber Band Force Meter
Tie a rubber band to the lifting string or use a spring balance to measure the lifting force before the mill stalls. Measure how much it stretches. You’ll be amazed by the power generated!

windmill-rubber-band

Continue

(25-30 Minutes)

In a Spin!
How can we store and use energy later?

In this exercise we are actually cranking the weight up by hand. You can do it using wind power too of course, if you then take off the sails before releasing the spinner.

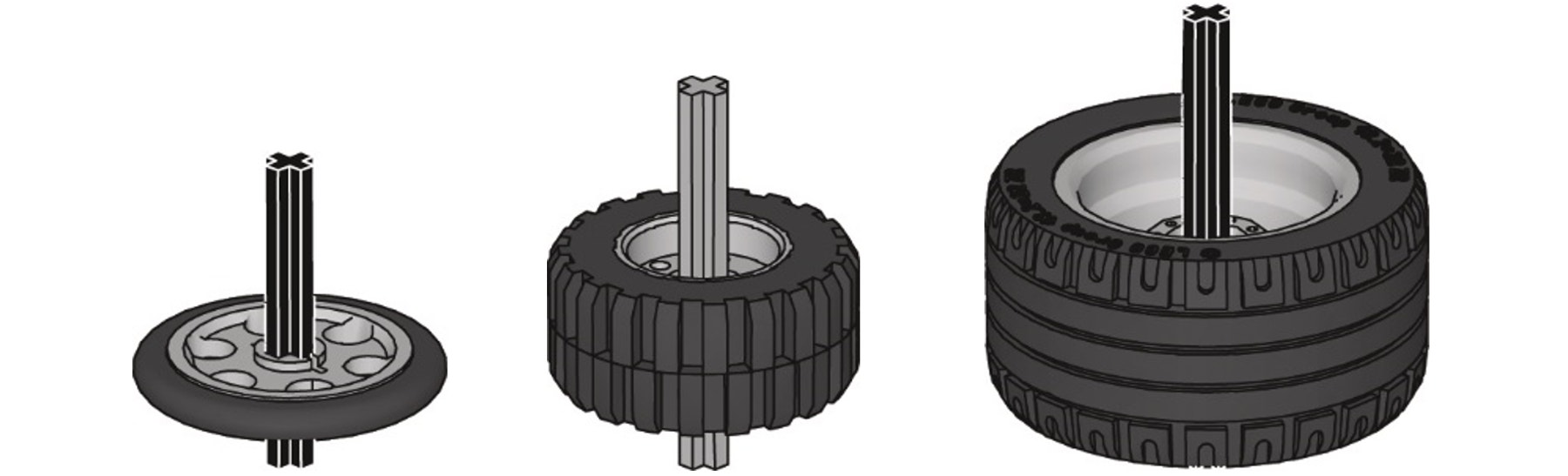

Disconnect the gearbox as in page 14, step 1 and make the 3 different spinning tops on pages 14, 15 and 16.

Did you know?
The different spinning tops weigh approx.:
2 g
8 g
16 g

windmill-spin

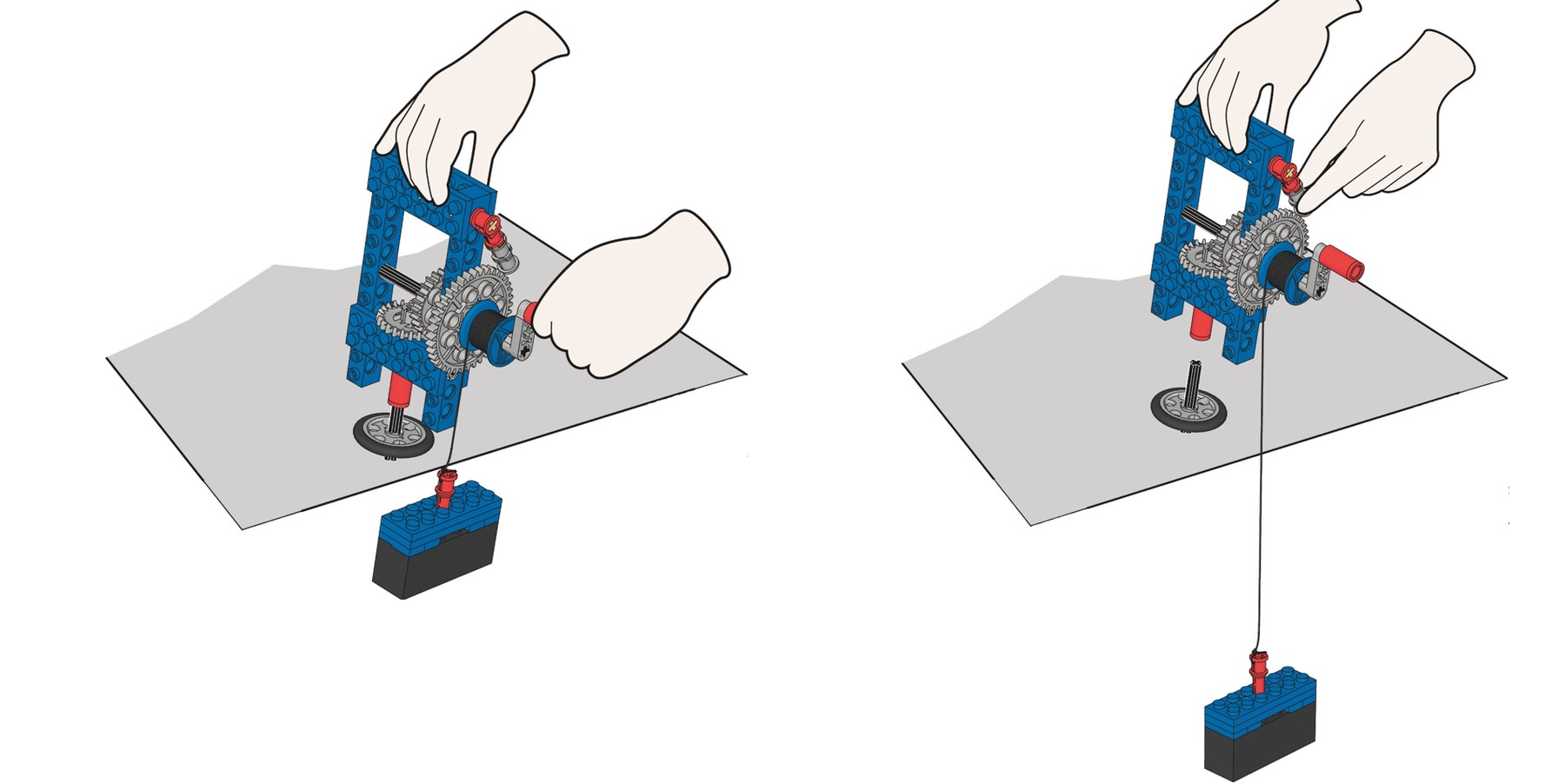

Crank up the weight (adding energy) and flip the ratchet to hold the weight up
(store the energy)

Connect a spinning top

Position the weight so it will fall over the edge of a table

Flip the ratchet to release the energy in the weight brick so it spins the top

Lift to release the spinning top

This takes skill so be patient

Which top will spin the longest and why? Predict and test more times with each spinner

windmill-crank-up

More Spins
Invent your own spinners to see if you can get even more speed and longer spinning times.

Invent your own spinning games and introduce your very own scoring system.

Teacher Support

Students will explore the concepts of:
Using mechanisms – gearing up and down
Designing and making
Combining materials
Ratchets
Safety and control systems
Forces and motion
Renewable energy
Measuring weight
Measuring time
Force
Area
Fair testing
Energy capture, storage and use
Scientific investigations

9686 Simple & Powered Machines Set (one set per two students is recommended)
Wind or desk fan
Brass weights or playdough
Stopwatch or other form of timer with a second hand
Optional: card and scissors to make own sails for the Windmill
