Conjunto SPIKE™ Prime

Aim for It

Explore kinetic energy during a movement using variable speed.

45-90 min.
Iniciante
6º ao 8º ano
Aim for it - Lesson Header

Prepare for Blended Learning

Before Class

  • Make sure to watch the lesson video on this page.
  • Read through the student material for this lesson via the link on this page, or in the SPIKE App.
  • You might want to consider:
    • Choosing the right tool(s) and the right place. For example, watching videos, reading a textbook, or preparing for a hands-on experience can easily be done at home. Performing the experiment and collecting data "hands-on" is easier in a classroom setting.
    • Using a variety of tools and allowing for broad differentiation. This will increase your students' engagement and improve learning outcomes.
    • Providing various methods of virtual collaboration. Here are some examples:
      • Videoconferencing
      • Blogs, chats, or wall posts
      • Digital versions of student worksheets
    • Adapting the lesson flow to account for not being a classroom setting throughout the entire lesson. We've provided an example lesson flow below.
Before Class In Class After Class
Engage Explore, Explain Elaborate, Evaluate
- Use online tools to engage students in a discussion or research about the topic
- Have your students watch the videos describing what they're about to do. You can point them to the SPIKE App or use the student worksheet URL.
- Maximize hands-on experience and collaboration when in class - Use online tools for sharing results, for assessment and for lesson extensions.
  • Here are other ways to adapt the lesson flow to your student needs:
    • Have your students watch the videos describing what they're about to do. You can point them to the SPIKE App or use the student worksheet URL.
    • Use any other material you may have already prepared on the topic.
    • Customize the Student Inventor Book to have your students prepare their learning experience and reflect on their findings. (see Additional Resources)
    • Use the Lesson Briefs (an easy-to-use lesson overview printable 1-pager) to inspire your students with an open ended challenge. (see Additional Resources)

Engage

Before Class, 20 Min.

  • This lesson explores how kinetic energy relates to speed and mass. Your students will perform an experiment that focuses on measuring the distance traveled over time, using wheel rotation as input. Using a graph showing rotations of a wheel over time, they'll trace a graph showing the distance traveled over time, and then try to graph the speed over time. Finally, they'll use the maximum speed value to calculate the kinetic energy using the formula: Ek = 1/2mv2
  • Use various materials to engage your students on the topic of metabolic energy.

Ignite a Discussion
Start a discussion by asking questions related to the lesson. Here are a few suggestions:

  • What does the graph showing the distance traveled over time look like?
  • What does the graph showing speed over time look like?
  • What does the graph showing kinetic energy over time look like?

Have your students write down their thoughts as a hypothesis.

Explore

In Class, 30 Min.

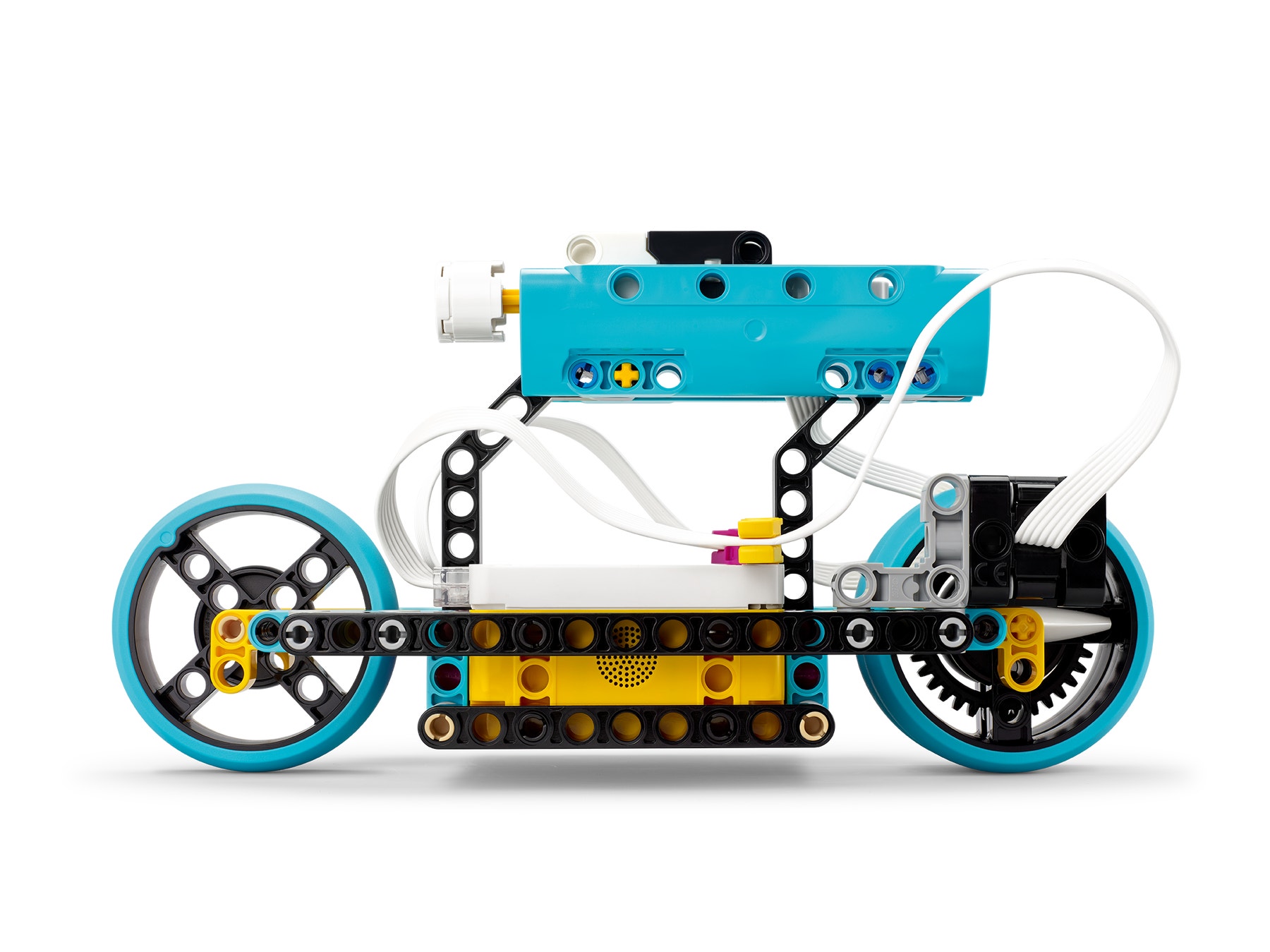

  • Have your students build a vehicle with free-moving wheels, and that can count wheel rotations. They can create their own models, or follow the building instructions in the app to build the Street Curling Rock model.
  • Ask your students to try out their models using the suggested program.
  • Have them trace a graph of the distance traveled over time, and describe what they see:
    • What do the spikes in the graph represent?
    • Why does the space between the spikes increase as time goes by?

Explain

In Class, 15 Min.

  • Have your students continue the experiment by:
    • Converting the rotations per seconds into distance
    • Converting the distance traveled over time into speed
  • Allow your students some time to adjust their programs to improve performance.
  • Encourage them to record as much data as possible during their experiments.
  • Have them export their data as a CSV file, so they can manipulate it in other software if they wish.

Elaborate

After Class, 20 Min.

  • If your students still have access to their SPIKE Prime Sets, have them complete the tasks from the SPIKE App, to elaborate with hands-on learning, for example:
    • Have your students play a game while logging their performance in their throws. Tell them to push their street curling rocks, attempting to have the front of the model stop as close as possible to the center of the target. Explain that each student or team has 3 tries, and must measure the distance from the center of the target to the front of their model after each attempt. The student or team with the smallest cumulative distance after 3 tries wins the game!
  • If your students don't have access to their sets, have them complete their Student Inventor Notebook, or assign one of the extension activities suggested below. Most of the extension activities can be done using the data collected during the hands-on session
  • Facilitate a sharing session in which your students exchange information. This can be done using whichever method/tool is most efficient (i.e., in-person or online).

Evaluate

  • Give feedback on each student's performance.
  • You can use the assessment rubrics provided to simplify the process.

Assessment Opportunities

Teacher Observation Checklist
Establish a scale that meets your needs, for example:

  • Partially accomplished
  • Fully accomplished
  • Overachieved

Use the following success criteria to evaluate your students' progress:

  • The students can program a device to log datae on a line graph..
  • The students can interpret the values coming from the line graph.
  • The students can explain kinetic energy in relation to speed.

Self-Assessment
Have each student choose the brick that they feel best represents their performance.

  • Blue: I can graph data using the program provided in the app.
  • Yellow: I can create my own line graph and explain my results.
  • Violet: I've created new experiments on my own.

Peer-Assessment

Encourage your students to provide feedback to others by:

  • Having one student score the performance of another using the colored brick scale above.
  • Asking them to present constructive feedback to each other so that they can improve their performance during the next lesson. This is a great opportunity to use videoconferencing tools or blog posting tools in a blended learning scenario.

Differentiation

Simplify this lesson by:

  • Limiting the lesson's focus to variations of the distance traveled over time

Take this lesson to the next level by:

  • Asking your students to design and build their own freewheeling vehicles and curling rocks, repeat the experiment, and compare their data with other model performance (e.g. from another student's data).
  • Having your students design and build their own pushing devices that can provide more regular throws, and document the design process

Tips

Building Tips


Coding Tips
Using Download Mode
This lesson is designed to be played in Download Mode. The Download Mode allows for a higher sample rate of data collection by the Hub. This means that the Line Graph has a better resolution. It also means that the data set has to be imported after the program has been stopped.

Using the Stop Program Block to transfer automatically data sets
Using this block will end your program and trigger automatically an upload of the collected data sets from the Hub to your device when connected via bluetooth. You need to manually upload data sets when using a USB connection.

Main Program

SPIKE Prime Science Aim for It - Step03 - pt-br

Science Data Tips

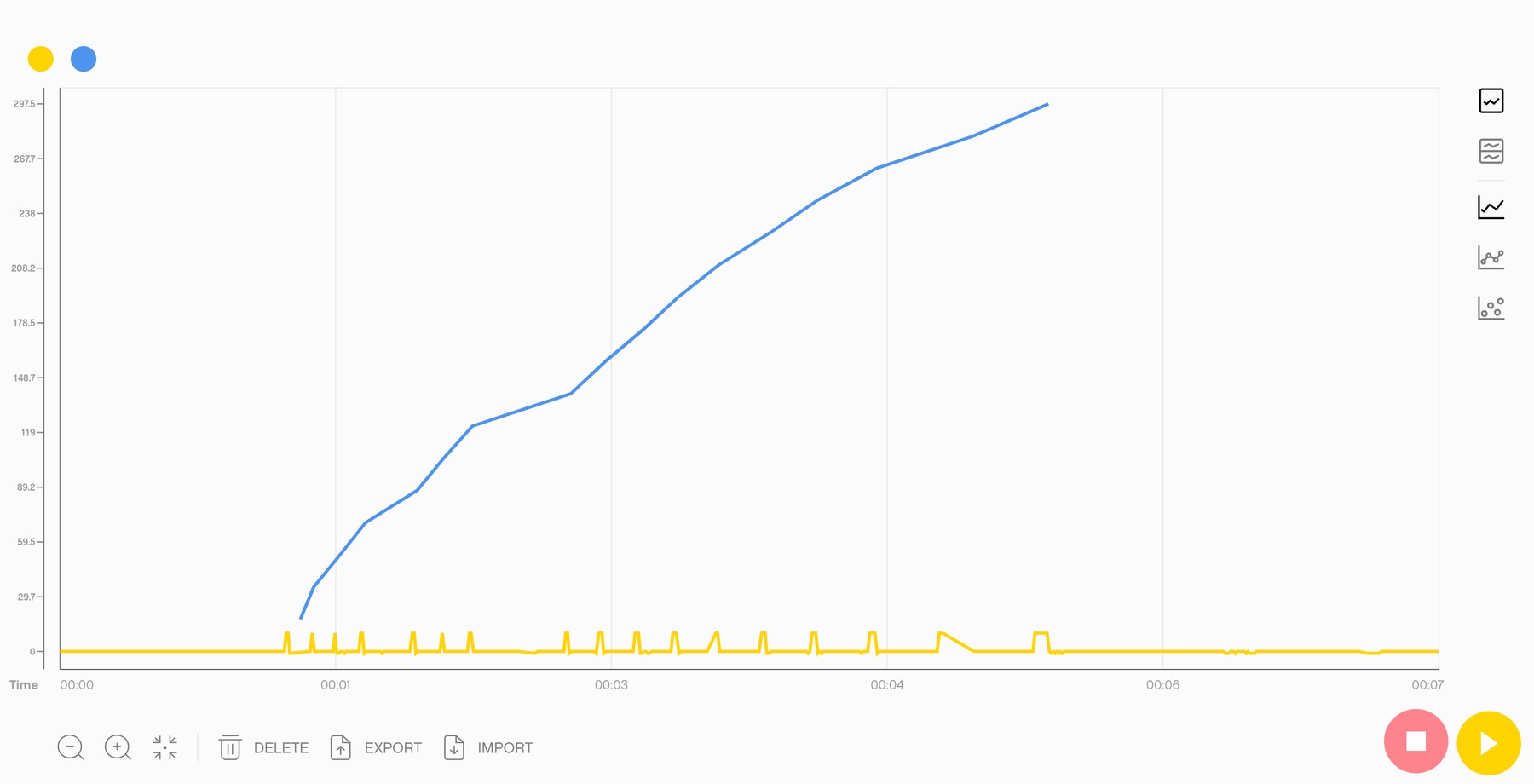

Here is an example of the data students can expect from this experiment.


Extensions

Math Extension

To incorporate the development of math skills:

  • Have your students explore what happens when they change their curling rock's mass by adding elements (e.g., motors) or a heavy object (e.g., a water bottle). Ask them to update their models, rerun the experiment, and compare the graphs showing speed over time for the different masses.

Note: This will require additional time.


Language Arts Extension

To incorporate the development of language arts skills:

  • Ask your students to create a marketing campaign promoting the key features of their models. Tell them to include their model's technical characteristics and use scientific facts related to the concepts of speed and energy to highlight their benefits.

Note: This will require additional time.


Career Links

Students who've enjoyed this lesson might be interested in exploring these career pathways:

  • Education & Training
  • Health Science

Suporte ao Professor

Students will:

  • Calculate initial speed for a decelerating movement from a graph showing the distance traveled over time
  • Use this approximated speed to calculate the average kinetic energy

LEGO® Education SPIKE Prime Set
Device with the LEGO Education SPIKE App installed

NGSS
MS-PS3-4
Plan an investigation to determine the relationships among the energy transferred, the type of matter, the mass, and the change in the average kinetic energy of the particles as measured by the temperature of the sample.

Common Core
CCSS.MATH.CONTENT.7.RP.A.2
Recognize and represent proportional relationships between quantities.

CCSS.MATH.CONTENT.7.RP.A.2.A
Decide whether two quantities are in a proportional relationship, e.g., by testing for equivalent ratios in a table or graphing on a coordinate plane and observing whether the graph is a straight line through the origin.

CCSS.MATH.CONTENT.7.RP.A.2.B
Identify the constant of proportionality (unit rate) in tables, graphs, equations, diagrams, and verbal descriptions of proportional relationships.

CCSS.MATH.CONTENT.7.RP.A.2.C
Represent proportional relationships by equations. For example, if total cost t is proportional to the number n of items purchased at a constant price p, the relationship between the total cost and the number of items can be expressed as t = pn.

CCSS.MATH.CONTENT.7.RP.A.2.D
Explain what a point (x, y) on the graph of a proportional relationship means in terms of the situation, with special attention to the points (0, 0) and (1, r) where r is the unit rate.

CCSS.ELA-LITERACY.W.7.2
Write informative/explanatory texts to examine a topic and convey ideas, concepts, and information through the selection, organization, and analysis of relevant content.

CCSS.ELA-LITERACY.W.7.2.A
Introduce a topic clearly, previewing what is to follow; organize ideas, concepts, and information, using strategies such as definition, classification, comparison/contrast, and cause/effect; include formatting (e.g., headings), graphics (e.g., charts, tables), and multimedia when useful to aiding comprehension.

CSTA
2-CS-02
Design projects that combine hardware and software components to collect and exchange data.
2-DA-09
Refine computational models based on the data they have generated.

ISTE
4a
Students know and use a deliberate design process for generating ideas, testing theories, creating innovative artifacts or solving authentic problems.
4b
Students select and use digital tools to plan and manage a design process that considers design constraints and calculated risks.
4c
Students develop, test and refine prototypes as part of a cyclical design process.
5b
Students collect data or identify relevant data sets, use digital tools to analyze them, and represent data in various ways to facilitate problem-solving and decision-making.
5d
Students understand how automation works and use algorithmic thinking to develop a sequence of steps to create and test automated solutions.

Material do aluno

Download, view or share the student worksheet, either as an online HTML page or a printable PDF
