SPIKE™ Prime Set

Training Camp 1: Driving Around

Build a Practice Driving Base and make precise and controlled movements.

30-45 min.
Beginner
Grades 6-8

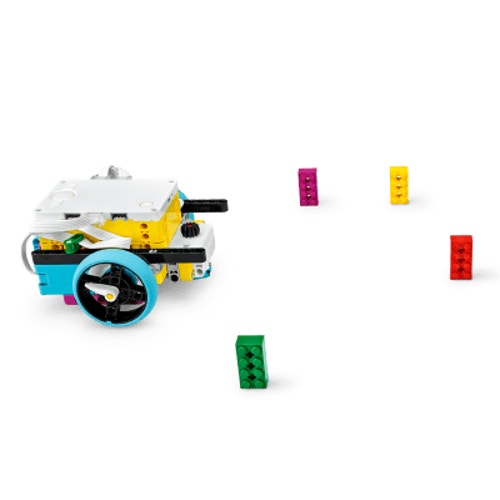

lesson-header

Lesson plan

1. Prepare

  • Read through the pupil material in the LEGO® Education SPIKE App.
  • If you feel that it's necessary, plan a lesson using the getting started material in the app. This will help to familiarise your pupils with LEGO® Education SPIKE Prime.

2. Engage (5 Min.)

  • Use the ideas in the Ignite a Discussion section below to engage your pupils in a discussion relating to this lesson.
  • Use the video to explain the lesson.

3. Explore (20 Min.)

  • Have your pupils work in pairs to build the Practice Driving Base model.
  • Allow them some time use the programming stacks that have been provided to explore the movement of the Driving Base.
  • Ask them to change the values and parameters of the blocks and to observe the effects.

4. Explain (5 Min.)

  • Facilitate a discussion about the importance of planning each step of their program.
  • Explain what pseudocode is and how it can help in their program planning.

5. Elaborate (15 Min.)

  • Have your pupils find a way to move their Driving Base in a square.
  • Set up a navigation challenge and encourage your pupils to test their skills.
  • Don't forget to leave some time for tidying up.

6. Evaluate

  • Give feedback on each pupil's performance.
  • In order to simplify the process, you can use the assessment rubrics that have been provided.

Ignite a Discussion

Successfully navigating through obstacles on robotics competition fields is a key to success. Engage your pupils in a discussion by asking them to:

  • Describe a field tactic associated with their favourite sport
  • List all of the movements that they think their Driving Base should be able to perform

Have your pupils watch this video to see what they're about to do.

lesson-header

Building Tips

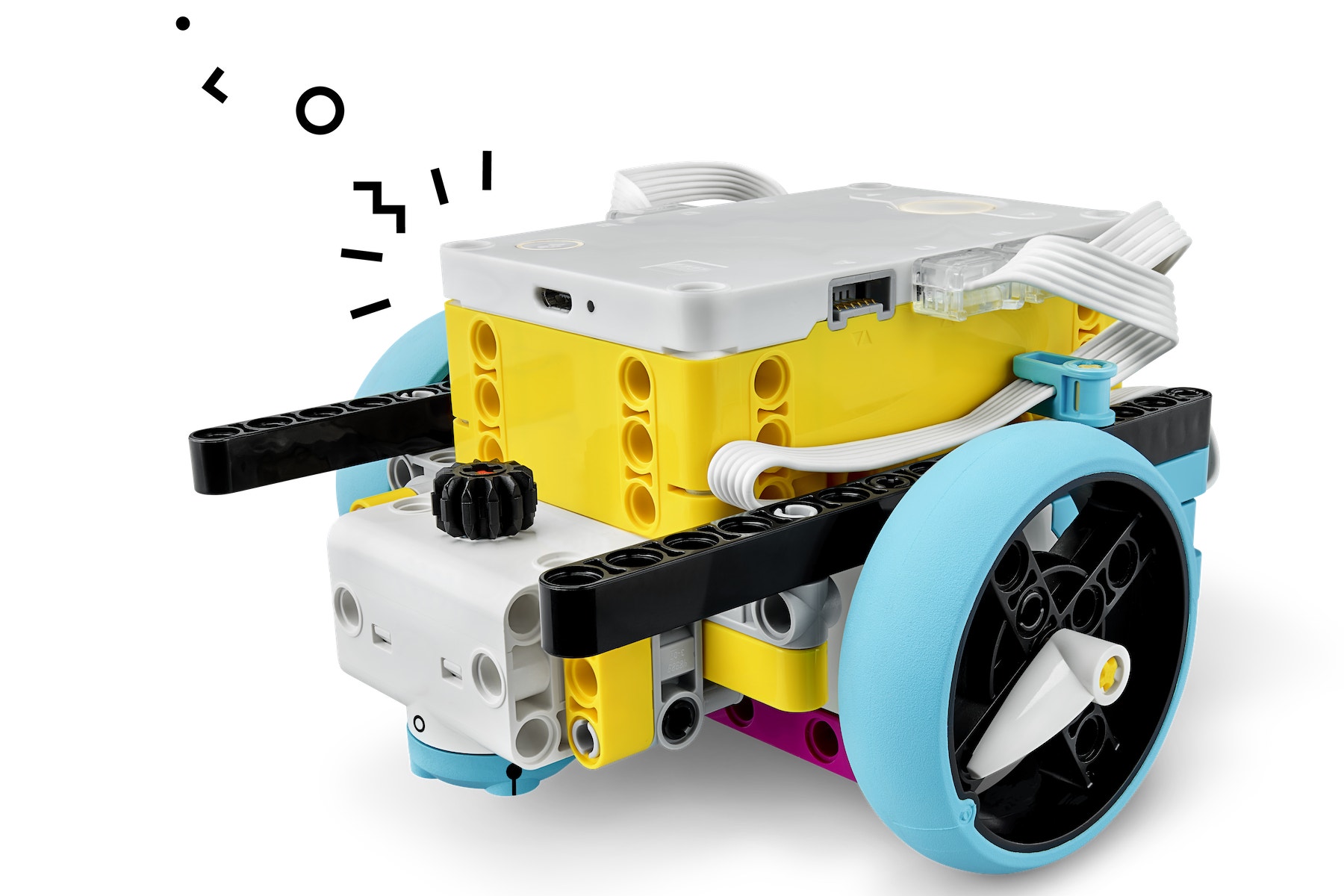

A Simple Driving Base
Use the simple Driving Base model without sensors. Remember to use the cable clips.

teacher-PDB

Coding Tips

Main Program

SPIKE Competition Ready Training camp 1 Step03-Program - en-au

Possible Solution

SPIKE Competition Ready Training camp 1 Teacher Solution - without gyro - en-au

Other Programs

SPIKE Competition Ready Training camp 1 Teacher Solution - with gyro - en-au

Differentiation

Simplify this lesson by:

  • Spending extra time explaining what is being controlled by each parameter of the programming blocks

Take this lesson to the next level by:

  • Asking your pupils to use the Gyro Sensor to program their Driving Base to drive in a square
  • Practising speed and precision on a larger surface, like a competition table

Assessment Opportunities

Teacher Observation Checklist
Establish a scale that suits your needs, for example:

  1. Partially accomplished
  2. Fully accomplished
  3. Overachieved

Use the following success criteria to evaluate your pupils' progress:

  • The pupils are able to select appropriate blocks for making controlled movements.
  • The pupils are able to change the parameters of blocks in iterative ways.
  • The pupils are able to stack appropriate move blocks together to create programs.

Self-Assessment

Have each pupil choose the brick that they feel best represents their performance.

  • Blue: I've made the Driving Base move in different ways.
  • Yellow: I've created different programs in order to move the Driving Base move in a square.
  • Violet: I've combined different types of motor movements in order to successfully navigate around obstacles.

Peer-Assessment
Encourage your pupils to provide feedback to one another by:

  • Having one pupil use the coloured brick scale above to score another pupil’s performance
  • Asking them to present constructive feedback to one another so that they can improve their group’s performance during the next lesson
student-06

Language Arts Extension

To incorporate the development of language arts skills:

  • Have your pupils look for the most precise way of travelling a distance of 2 metres by exploring these options:

    ▷ Move in seconds
    ▷ Move in degrees
    ▷ Move in rotations
    ▷ Move with sensor

  • Ask them to create a document explaining in which situation(s) they'd use each option and why.

Note: This will require additional time.

Maths Extension

To incorporate the development of maths skills:

When calculating distances with the Driving Base:

  • Drive forward for one second, one rotation or a certain number of degrees. Use this as the basis for estimating the total distance based on the distance that was travelled.
  • Calculate the circumference of the wheel and use this to measure the distance travelled (circumference = Pi x diameter or circumference = Pi x 2 x radius)

Note: This will require additional time.

The pupils who enjoyed this lesson might be interested in exploring these career pathways:

  • Health Science (Medical and Health Careers)
  • Information Technology (Game Programming)

Teacher Support

The pupils will:

  • Learn how to execute controlled movements (e.g. straight move, point turn, curved move, turn with sensor, drive in a shape) using a Driving Base

LEGO Education SPIKE Prime Set

Australian Curriculum: Technologies
ACTDIP019
Design, modify and follow simple algorithms involving sequences of steps, branching, and iteration (repetition)
ACTDIP020
Implement digital solutions as simple visual programs involving branching, iteration (repetition), and user input
ACTDIP030
Implement and modify programs with user interfaces involving branching, iteration and functions in a general-purpose programming language

Student Material

Download, view or share the student worksheet, either as an online HTML page or a printable PDF
