Simple & Powered Machines Set

Trundle Wheel

Design and make an accurate distance measuring device measure, count and calibrate scales for accuracy.

45-90 min.
Intermed.
Years 7-9 or Key Stage 3
trundle-wheel-connect

Connect

(5-10 Minutes)

Jack and Jill are in the park preparing for the school sports’ day. Their favourite discipline is the long jump. Jack has just made a huge jump. He is all excited and
wants to know how long his jump is.

Jill has not got a ruler long enough to measure the distance so she is doing it in footsteps. Zog the Dog feels that he is much better at jumping so he is trying too.

Jill says that Jack’s jump was 58 cm.

Jill takes her turn on the long jump. She says her jump was 4 metres, so Jack thinks she is just guessing ... and not very well, either!
They need some sort of device that can measure a long jump properly.

What sort of measuring machine can you invent that could measure a long jump?
Let’s find out!

trundle-wheel-connect

Construct

(20-25 Minutes)

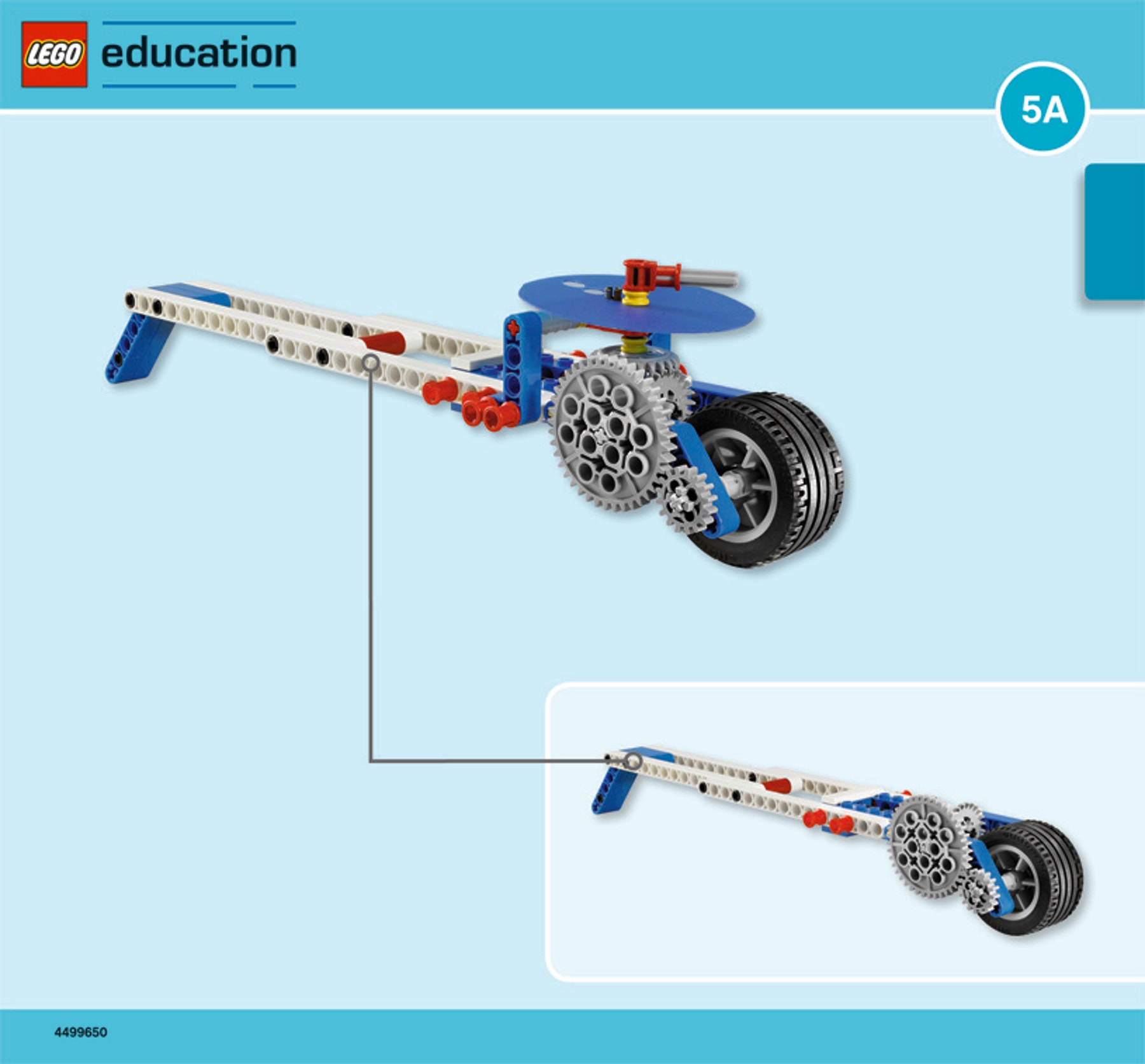

Build the Trundle Wheel
(all of book 5A and book 5B to page 6, step 11).

trundle-wheel-building-instructions-front-page

Mark on the blue plastic disc or trace around it and cut out a paper copy. Put on scale markings and attach it on top of the blue plastic disc.

Make sure that the pointer moves smoothly as you push the Trundle Wheel. If it is stiff, loosen overly tight axle bushings and make sure all other elements are firmly pressed together

What is this measuring device good at measuring? Ask the children for ideas and
draw up a list

Mark on the blue plastic disc or trace around it and cut out a paper copy. Put on scale markings and attach it on top of the blue plastic disc.

trundle-wheel-hand-cut-scale

Contemplate

(20-25 minutes)

Stepping out: Making a Foot Wheeler
How many ‘feet’ fit on the scale?

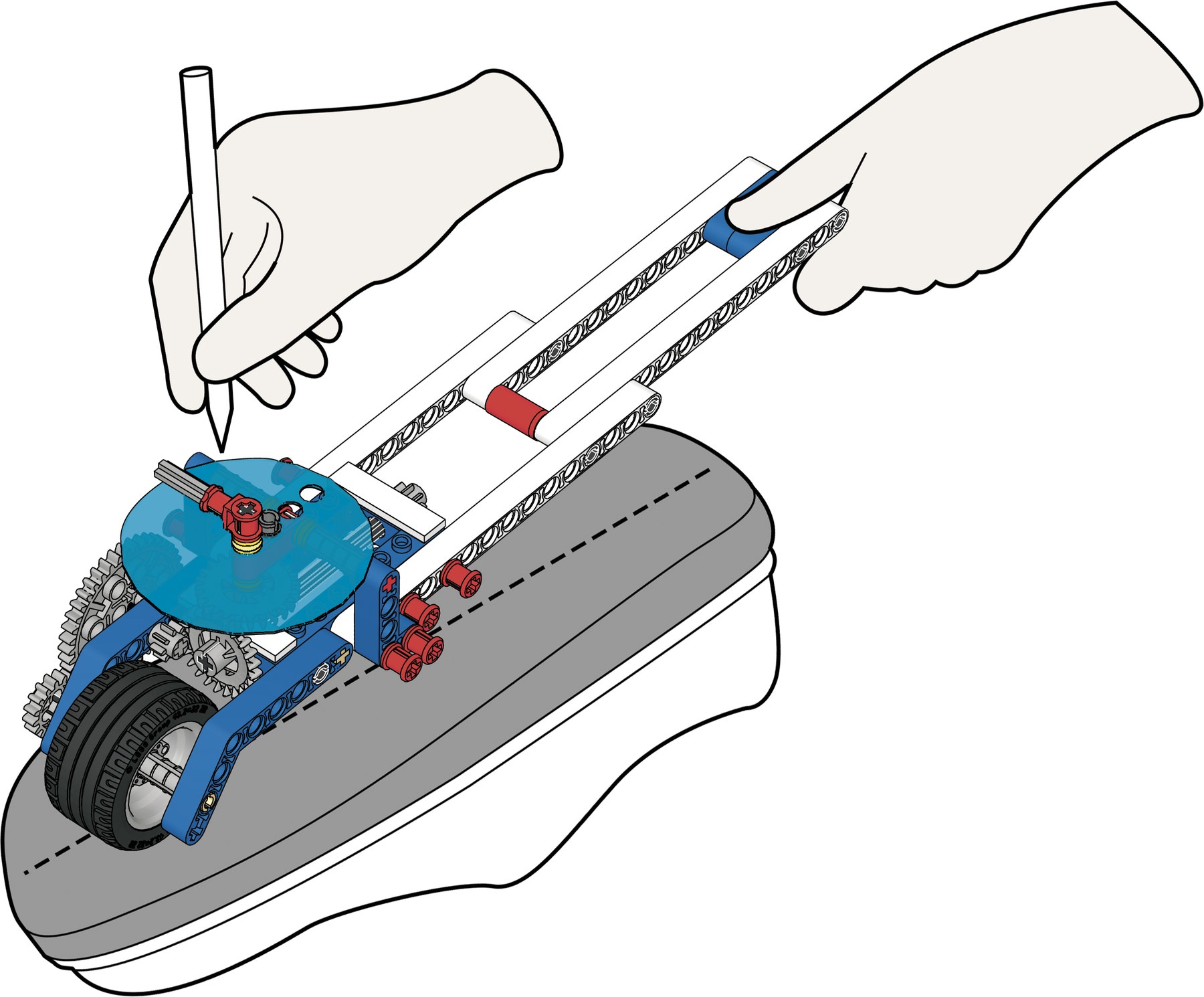

Measure your shoe – several times! Mark ‘zero’ and then add a new mark to the dial each time you reach the end of your shoe until you’ve been around the scale (you won’t get a whole number of ‘shoes’).

This is calibrating the scale in units of ‘shoe’.

trundle-wheel-track-trace

NB.
Learn how to reset the pointer after each measurement

Predict
How many shoes wide is your desk! First use your foot wheeler to measure it! Then take off your shoe and measure it with your shoe. How accurate was your foot wheeler?

What are the problems of measuring in shoe lengths?

People’s feet are not always the same size!
This is why we usually select an international standard unit of measurements, e.g. the metric system.

NB.
The accuracy of our scale depends on how much pressure the children place on the tyre. Light pressure is ideal.
Try it and see.

Meter magic trundle: is it better than a ruler?
Collect 3 items that you believe are less than 1 metre long.
• Predict how long each is
• Measure with the Trundle Wheel
• Measure with a ruler
• What did you discover

trundle-wheel-track

Rulers are the most accurate, usually followed closely by the Trundle Wheel, and
then predictions. What Trundle Wheels are really good at is quickly measuring things that are longer than a normal ruler.

But what happens for distances over 1 m?
What happens with your perfect long jump?

If you measure 1.5 m, the pointer shows 50 cm! The pointer has been around once and is starting again. This may be a problem: you need to remember how many times the pointer passes the zero marker.

Continue

(25-30 Minutes)

How can we use the Trundle Wheel to measure long jumps of more than 1 m?
What might happen if we add another scale with a pointer that moves much slower than the first scale?

It should measure more than 1 metre.

Build the model to page 12, step 11.
Trace and cut out the 3 m scale in paper if you want to keep your scales. Wheel it further than 1 m. Practice reading both scales for extra accuracy.

Gear Facts
The 2 pointers are connected via an 8-tooth and a 24-tooth gear. This gears down the speed of the second pointer 3 times, allowing one dial to now cover 3 m.

trundle-wheel-long-jumps

Now it’s time to start jumping!
Students should practice their long jump skills, though obviously conditions in the classroom have to be taken into consideration and safety comes first. One possibility is to go outside and practice jumps on a lawn, another is to use a standing long jump

Predict how far you’ll jump. Then use the Trundle Wheel to measure the result. You could also try measuring with a ruler. What did you discover?

It is much easier to use the Trundle Wheel. It measures up to 3 m in one go. But you must read two scales for most accuracy. In comparison, you need to move the ruler a lot and add up the amounts in your head. And every time you move the ruler there’s a chance that an error might occur.

trundle-wheel-kids-measuring

Leonardo’s Magic Body Facts
What does Leonardo da Vinci’s famous symbol mean?
Try measuring all the distances shown. See if you can spot any ‘patterns’. If another person tells you her height, can you tell how long her arm span will be – or how
long her head will be?

Often arm span (1) and height (2) are the same. The head (3) is often 1/6th of a person’s full height. These are handy rules to know when drawing people. What about legs and arms?

trundle-wheel-da-vinci

Idea
The wonderful thing about a trundle as opposed to a ruler is also that it is great at measuring around curves. Estimate your head and waist size – then measure and be amazed.

NB.
You may need to measure with the person standing against a wall and running the Trundle Wheel up the wall beside them.

Teacher Support

Students will explore the concepts of:
Using mechanisms – gear ratios, gearing down
Assembling components
Combining materials
Measuring distance
Calibrating scales
Scientific investigations

9686 Simple & Powered Machines Set (one set per two students is recommended)
Ruler
Three straight-edged objects less than 1 m long
Space on a smooth floor to safely carry out a long jump
Whiteboard markers

Pupil Material

Student Worksheet

Download to view and share the student worksheet.
