LEGO MINDSTORMS Education EV3 Core Set

Curved Move

Use the Move Steering block to steer the Driving Base.

0-30 min.
Beginner
Grades 6-8
Curved Move
Teacher Support

Students will:
Use the Move Steering block to steer the Driving Base.

This lesson works on the following operating systems:
device_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logo

Curved Move

Build It

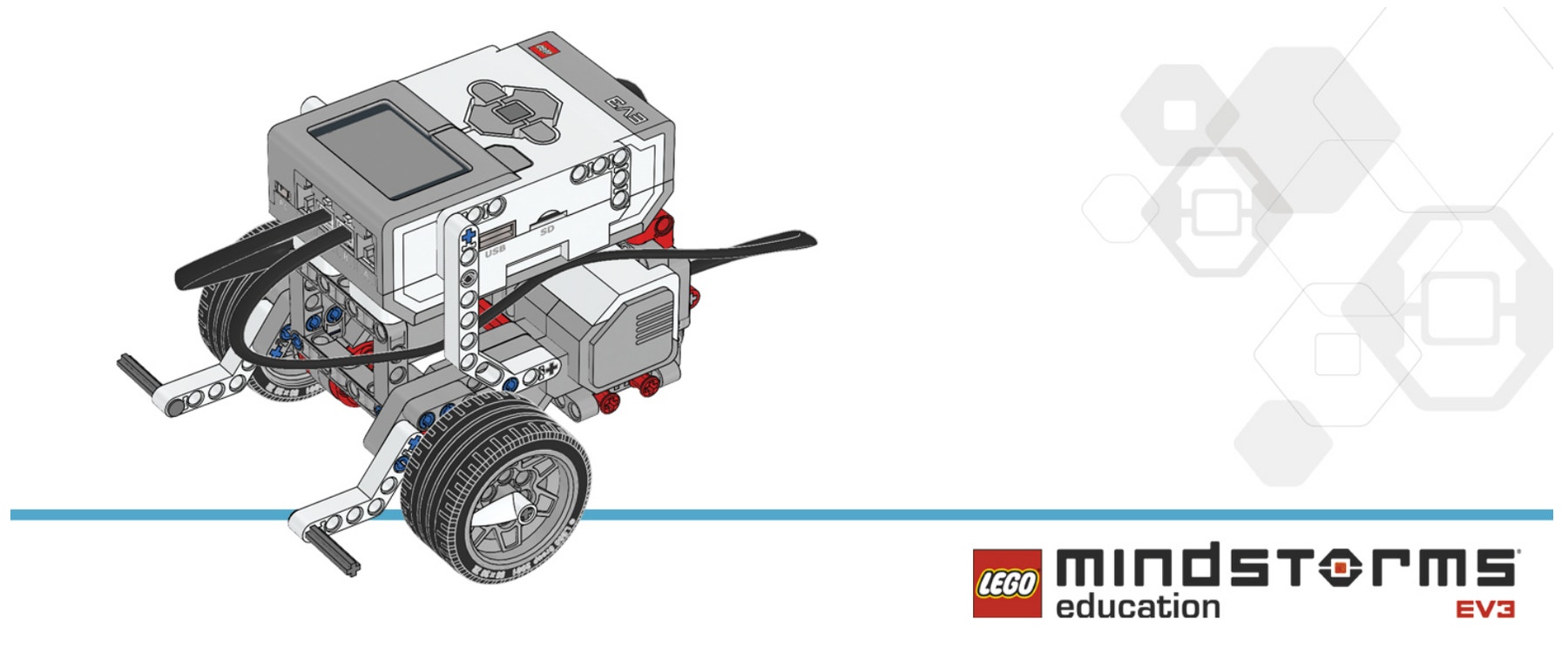

Build the Driving Base model.

Test It

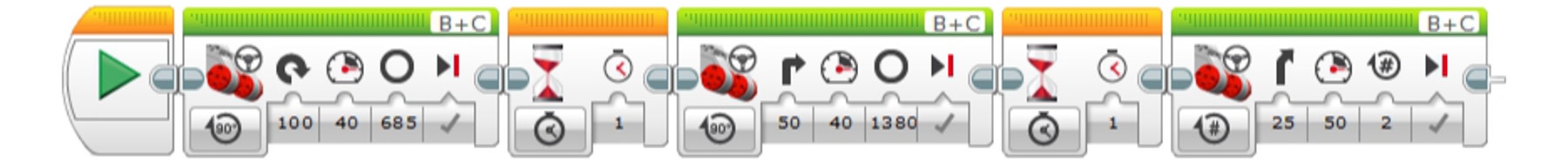

Recreate the program shown, then download and run to test.


Hint

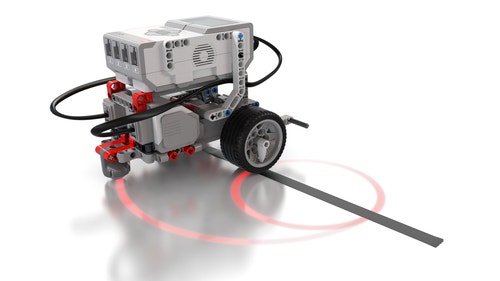

Use the Wheel Pointers to help understand the relationship between motor and Driving Base rotation.
Students often assume a 90 degrees motor turn is equal to a 90 degree driving base turn.
Note that the distance between the driving wheels will affect the turning radius.

Program Summary

Start
Move Steering – Degrees[685], Steering[100]
Wait – Time[1s]
Move Steering – Degrees[1380], Steering[50]
Wait – Time[1s]
Move Steering – Rotations[2], Steering[25]

Modify It

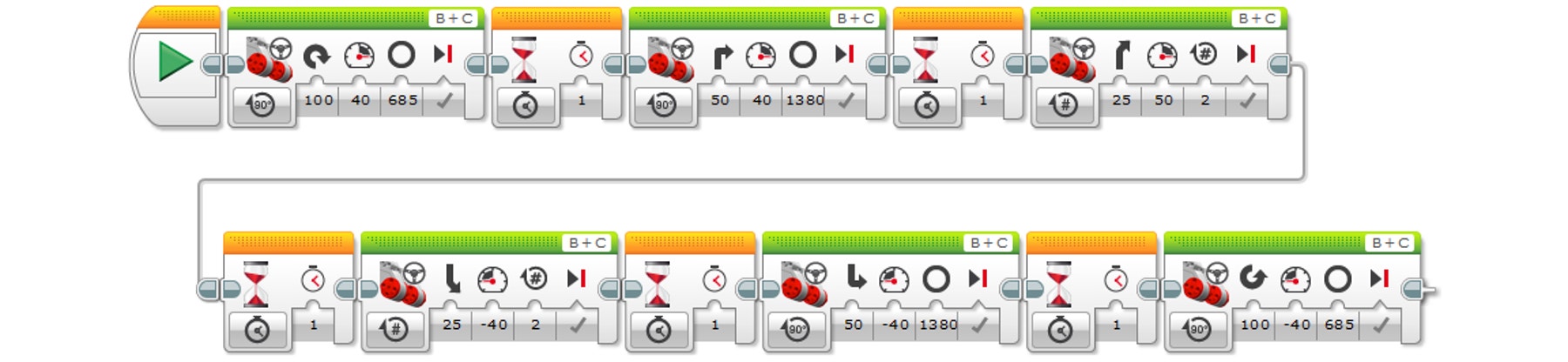

Now it’s your turn! Add three more Move Steering blocks to your program so that it makes the Driving Base return to its starting position.

What is next?
