LEGO MINDSTORMS Education EV3 Core Set

Straight Move

Investigate different ways of controlling a Driving Base moving in a straight line.

0-30 min.
Beginner
Grades 6-8
Straight Move
Teacher Support

Students will:
Investigate different ways of controlling a Driving Base moving in a straight line.

This lesson works on the following operating systems:
device_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logo

Straight Move

Build It

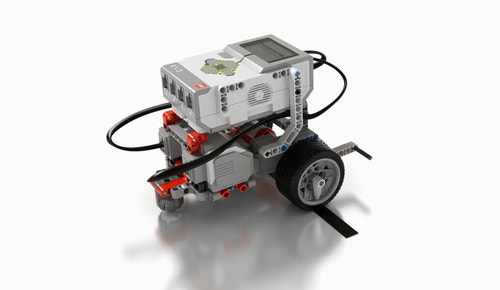

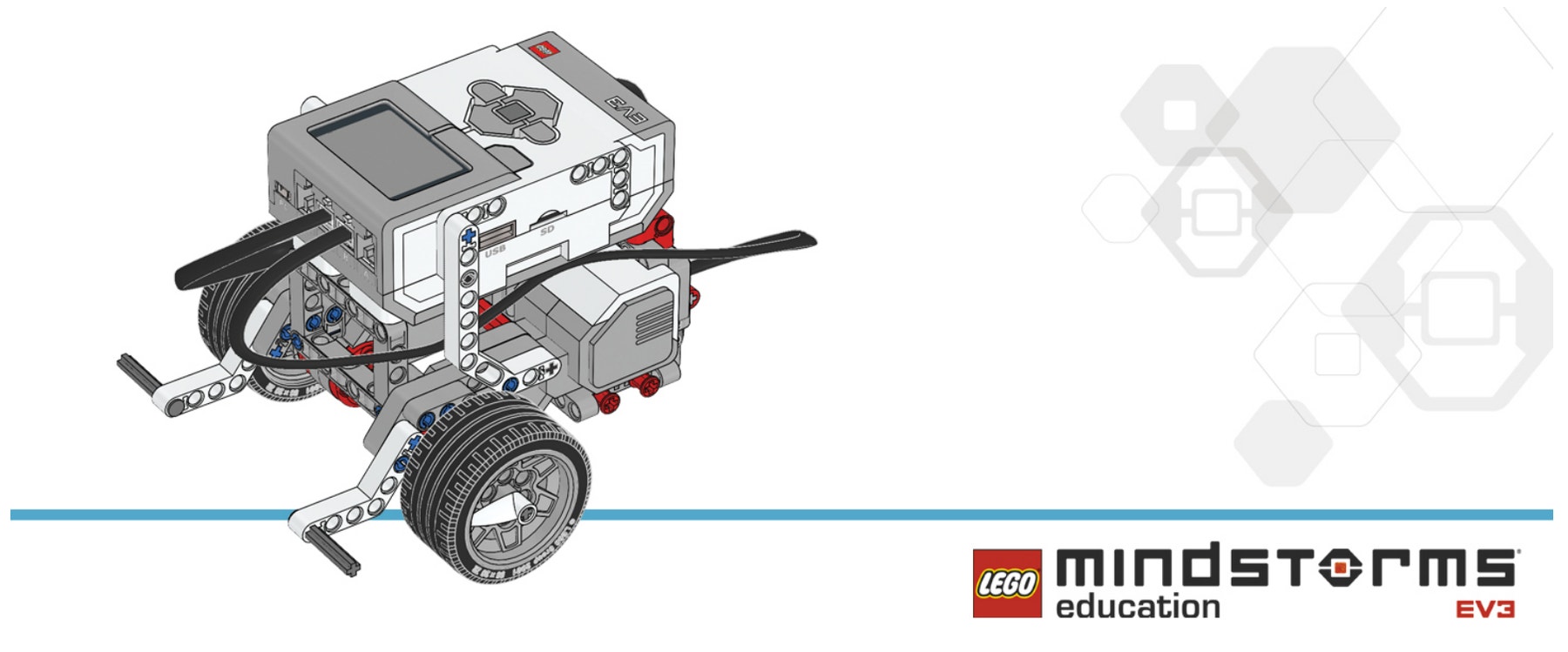

Build the Driving Base model.

Test It

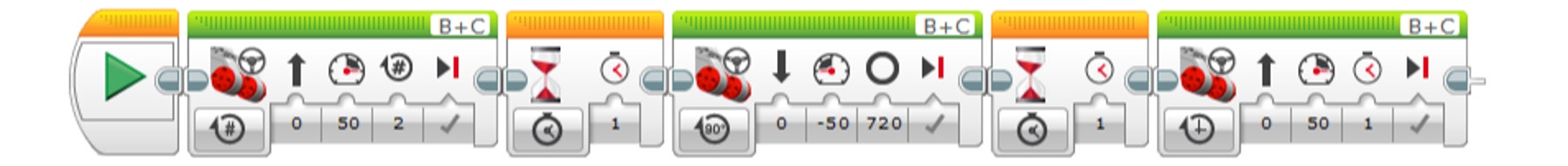

Recreate the program shown, then download and run to test.


Troubleshooting
When movement is defined in Seconds, the distance traveled is affected by the battery level. When defined in Degrees, the motion is more precise.

Hint
The Driving Base will drive in a straight line with a ’Steering’ parameter value of [0].

Program Summary

Start
Move Steering – Rotations[2]
Wait – Time[1s]
Move Steering – Degrees[720]
Wait – Time[1s]
Move Steering – Seconds[1]

Modify It

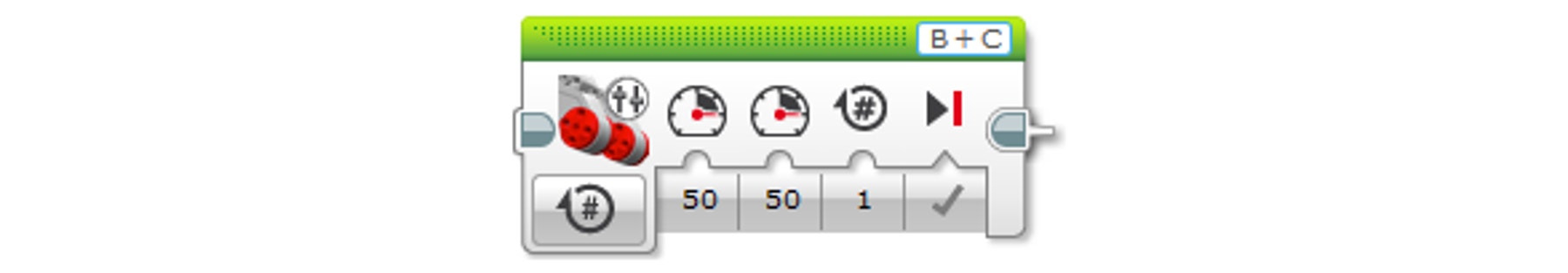

Now it’s your turn! Make the Driving Base do the exact same movement using the Move Tank block.

What is next?

Teacher Support

Students will:
Investigate different ways of controlling a Driving Base moving in a straight line.

This lesson works on the following operating systems:
device_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logodevice_logo
