# First Gear

Build a *Gear Model* to master the basics of gears.

## Lesson Plan

**1. Prepare**

- Read through the student material in the EV3 Classroom App.
- Collect some information about gears that will help your students understand concepts such as
*gear ratio*,*input and output gear*, and*idler gears*.

**2. Engage (5 Min.)**

- Use the ideas in the
*Ignite a Discussion*section below to engage your students in a discussion related to this lesson. - Split your class into pairs.

**3. Explore (20 Min.)**

- Have each pair of students build the
*Gear Model*. - Give them some time to do a test run to ensure that the model is built correctly and works as expected.

**4. Explain (10 Min.)**

- Have each team perform the experiment using each of the suggested gear combinations, and record their results.
- Make sure they can create their own testing tables.

**5. Elaborate (10 Min.)**

- Have your students analyze how the different gear combinations relate to the number of rotations and the turning direction.
- Ask each team to briefly summarize the results of their experiments.
- Don’t forget to leave some time for cleanup.

**6. Evaluate**

- Give feedback on each student’s performance.
- You can use the assessment rubrics provided to simplify the process.

## Ignite a Discussion

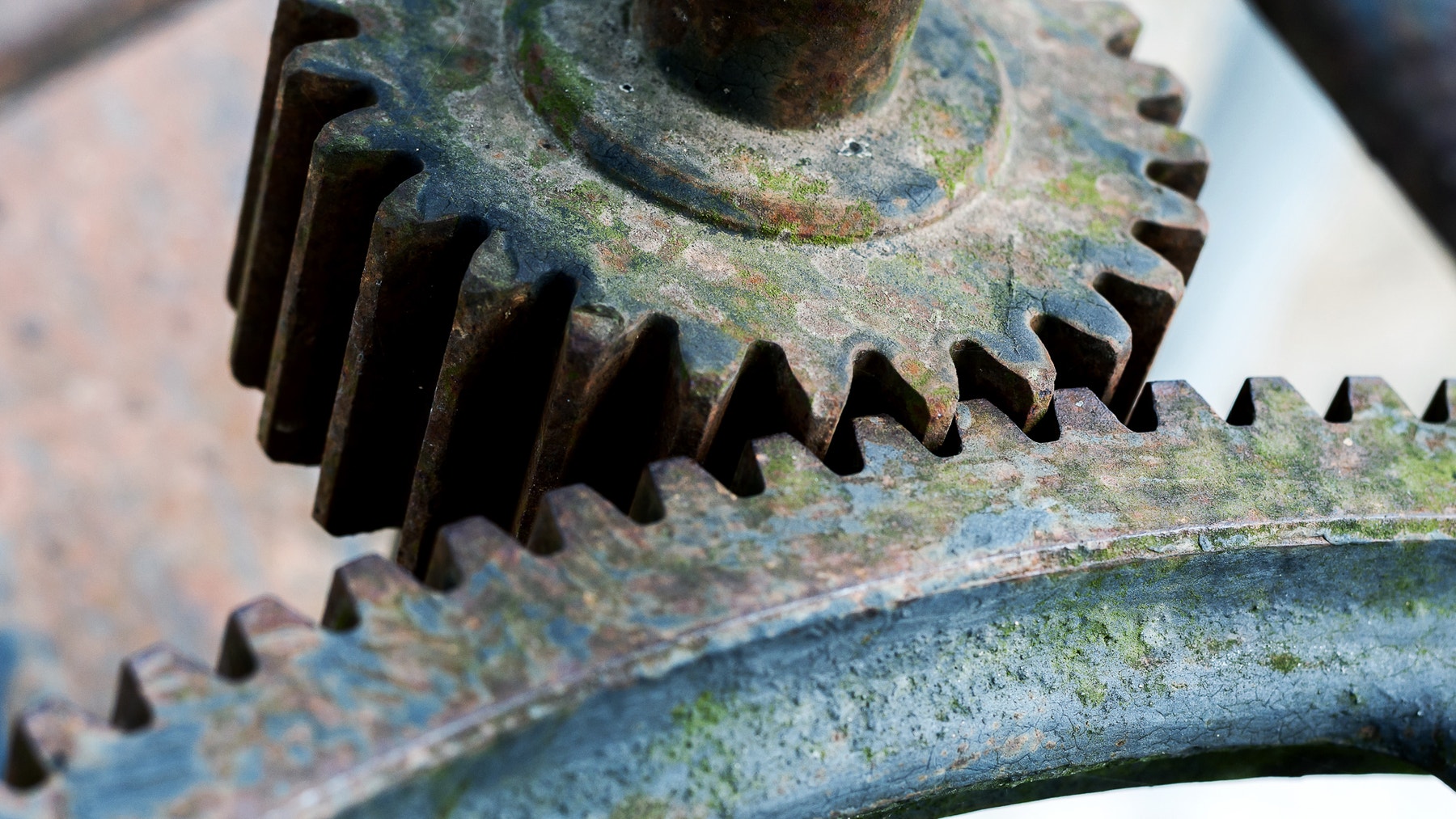

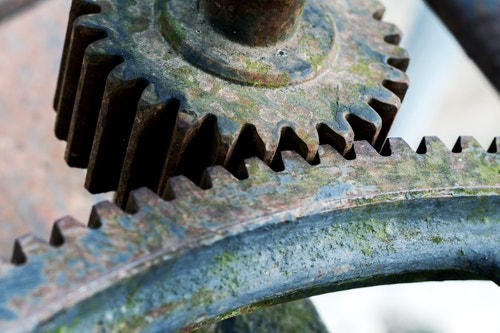

Gears are all around us! Simply explained, gears are *toothed wheels*. Two or more gears meshed together can be used to transfer force, increase or reduce speed, and change the direction of rotary motion.

Start a discussion about gears by asking relevant questions, like:

- What’s a
*gear wheel*? - Are you familiar with any machines that use gears?
- What happens to the turning direction when two gears are meshed together?
- How’s the gear ratio related to the number of teeth on the gears?

## Building Tips

**Building Instructions**

**Using the Model**

Place the model on a solid and level surface. Make sure that both the gear pointer and the reference motor pointer point upwards. Run the program and keep track of the gear pointer to count the number of rotations. Both motors should turn exactly one rotation. The students will change the gearing of the right motor and use the left motor as a reference.

**Running the Experiment**

As they’re running their experiments, remind your students of the following:

- Record the experiment number, whether it’s geared up or down, the gear ratio, your prediction of what’ll happen, the number of rotations observed, and turning direction in a testing table. Make sure to leave enough space to record other observations.
- Perform the experiment using each gear combination.

## Coding Tips

**Program**

## Differentiation

**Simplify this lesson by:**

- Working with your students to help them analyze how the gear combinations relate to the number of rotations and turning direction of the gear pointer
- Reducing the number of gear combinations the students must investigate

**Take this lesson to the next level by:**

- Encouraging the students to define a function to predict the number of rotations based on the gear ratio
- Challenging your students to modify the program for each gearing option so that the gear pointer turns exactly one rotation

## Assessment Opportunities

**Teacher Observation Checklist**

Create a scale that matches your needs, for example:

- Partially accomplished
- Fully accomplished
- Overachieved

Use the following success criteria to evaluate your students’ progress:

- Students understood how gears affect the turning direction of the driven wheel.
- Students explained how the gear ratio relates to the number of rotations of the driven wheel.
- Students learned how to calculate the gear ratio based on the number of teeth on the gear wheels.

**Self-Assessment**

Have each student choose the level that they feel best represents their performance.

- Bronze: I’ve performed the experiments but didn’t predict their outcomes based on gear combinations.
- Silver: With some help, I’ve predicted the turning direction in the experiments based on the gear combination used.
- Gold: I’ve used my understanding of gear combinations to correctly predict the turning direction and number of rotations in the experiments.
- Platinum: I’ve used my understanding of gear combinations to correctly predict the turning direction and number of rotations in the experiments. I’ve also predicted their impact on the speed and torque of the driven wheel.

## Language Arts Extension

To integrate language arts skills development, have your students:

- Create a brief report focusing on the results of their experiments and real-world examples of machines that use gears
- Create a presentation explaining the results of their experiments and what they’ve learned

*Note: This will make for a longer lesson.*
