SPIKE™ Prime Set

Broken

Figure out why something isn't working and fix it

45-90 min.
Beginner
Grades 6-8
lesson-header

Lesson plan

1. Prepare

  • Read through the student material in the LEGO® Education SPIKE App.

2. Engage (5 Min.)

  • Use the ideas in the Ignite a Discussion section below to engage your students in a discussion related to this lesson.
  • Use the video to explain the lesson.

3. Explore (35 Min.)

  • Have your students work in pairs to build the CNC machine, have them keep in mind that they're building a non-functioning machine.
  • Ask them to run the program and to try to identify and correct the issues they see.
  • Remind them to document the problems and their solutions.

4. Explain (10 Min.)

  • Facilitate a sharing session. Encourage your students to talk about the problems they found and the solutions they came up with.

5. Elaborate (25 Min.)

  • Ask each team to improve their CNC machine by modifying their build and/or program.
  • Have them take turns sharing their improvements with the class.
  • Don't forget to leave some time for cleanup.

6. Evaluate

  • Give feedback on each student's performance.
  • You can use the assessment rubrics provided to simplify the process.

Ignite a Discussion

Start a discussion about iteration or fixing things by asking relevant questions, like:

  • What's usually your first reaction when something breaks?
  • If you're going to fix something, what will you do first?
  • What's the last thing you've fixed? How did you find the problem?
  • What's a CNC machine? Do you know what it's used for?

Have your students watch this video to see what they're about to do.

lesson-header

Building Tips

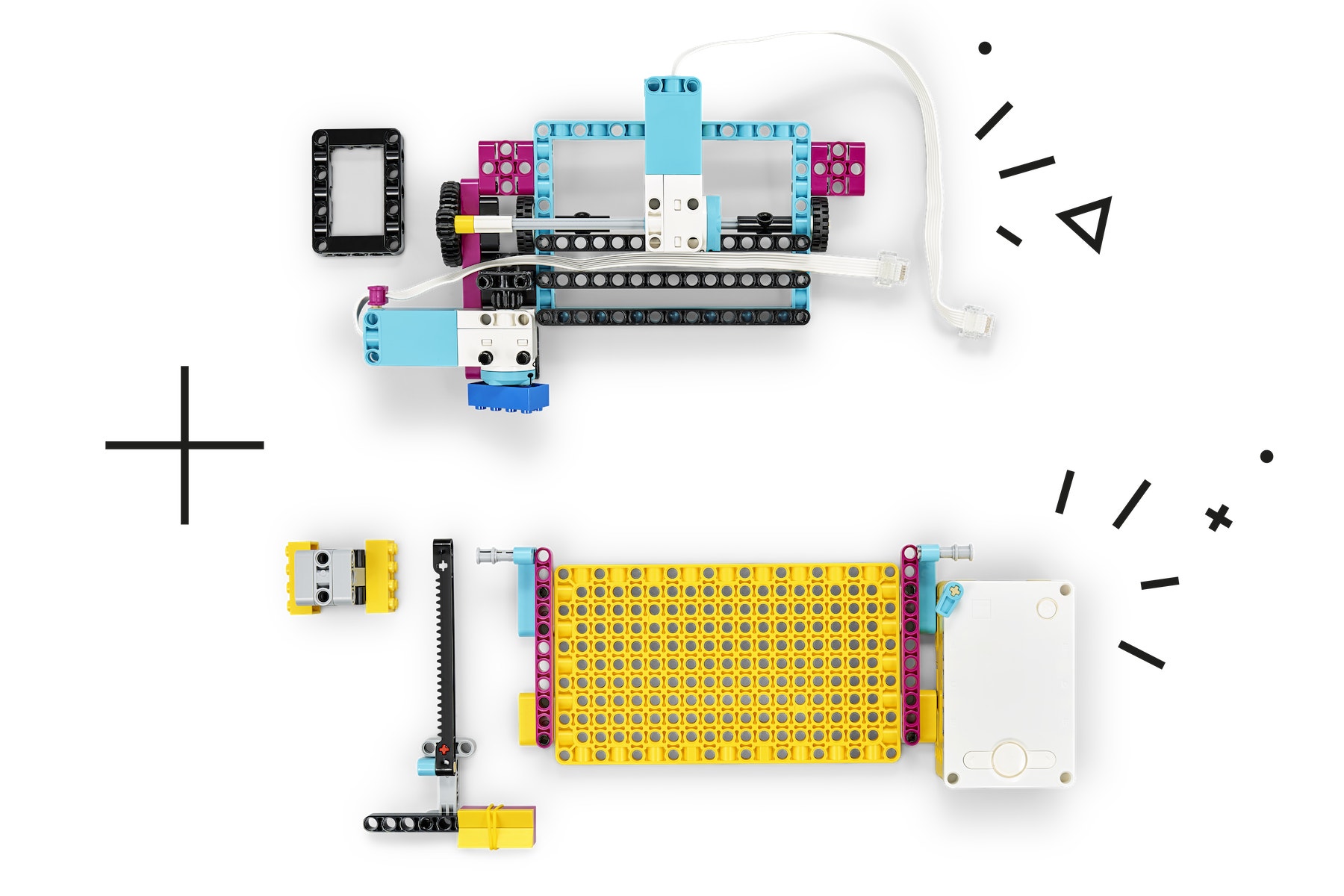

Tandem Build
Split each team's building tasks to ensure that everybody is actively involved:

  • Student A: top of the CNC machine
  • Student B: bottom and needle of the CNC machine
teacehr-2parts

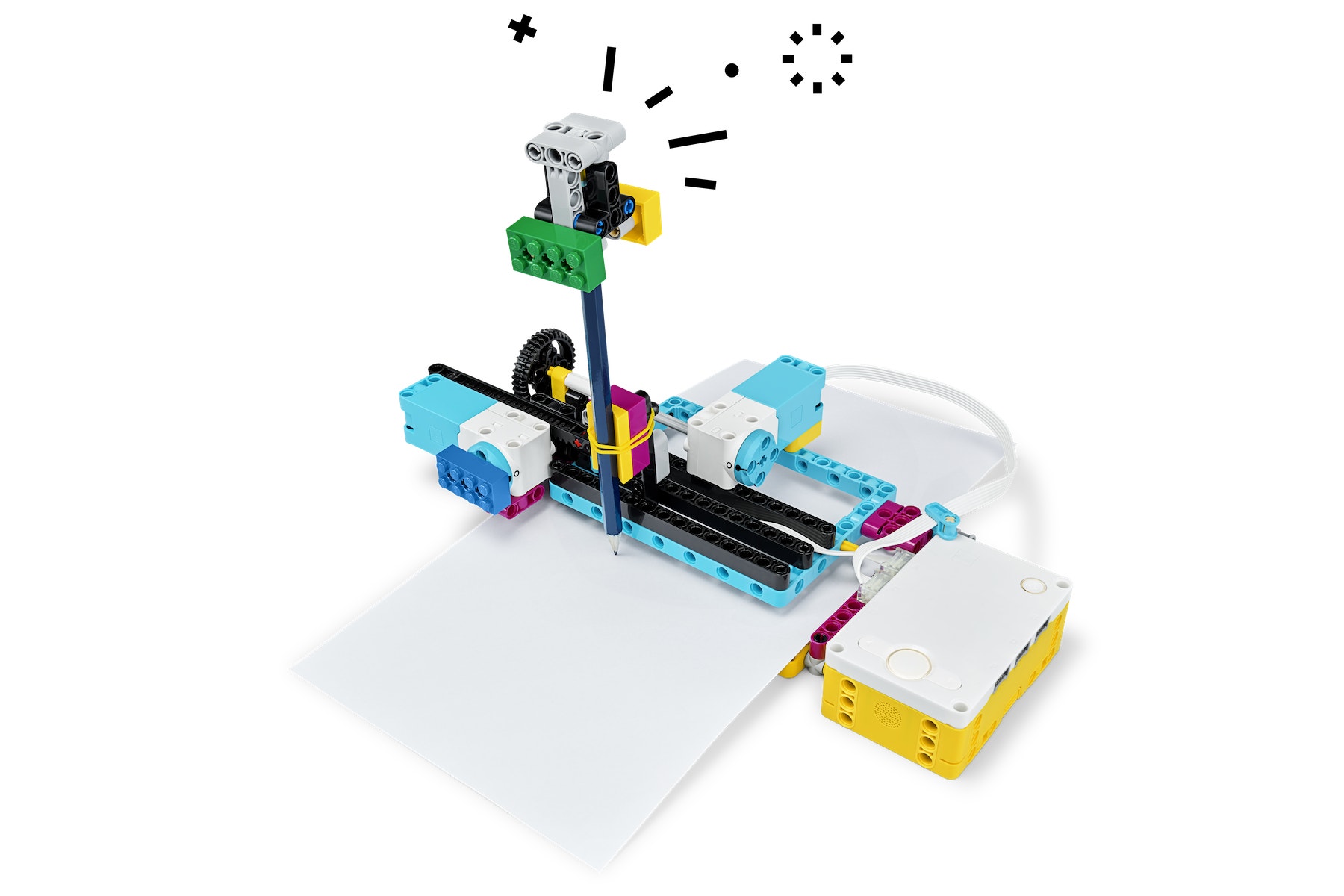

Pre-designed shapes
You can use blank sheets of letter-size paper for this lesson but pre-designed PDFs of CNC cuts are provided. By using these pre-designed sheets, it'll be easier for your students to figure out whether or not the CNC works.

teacher-shapes

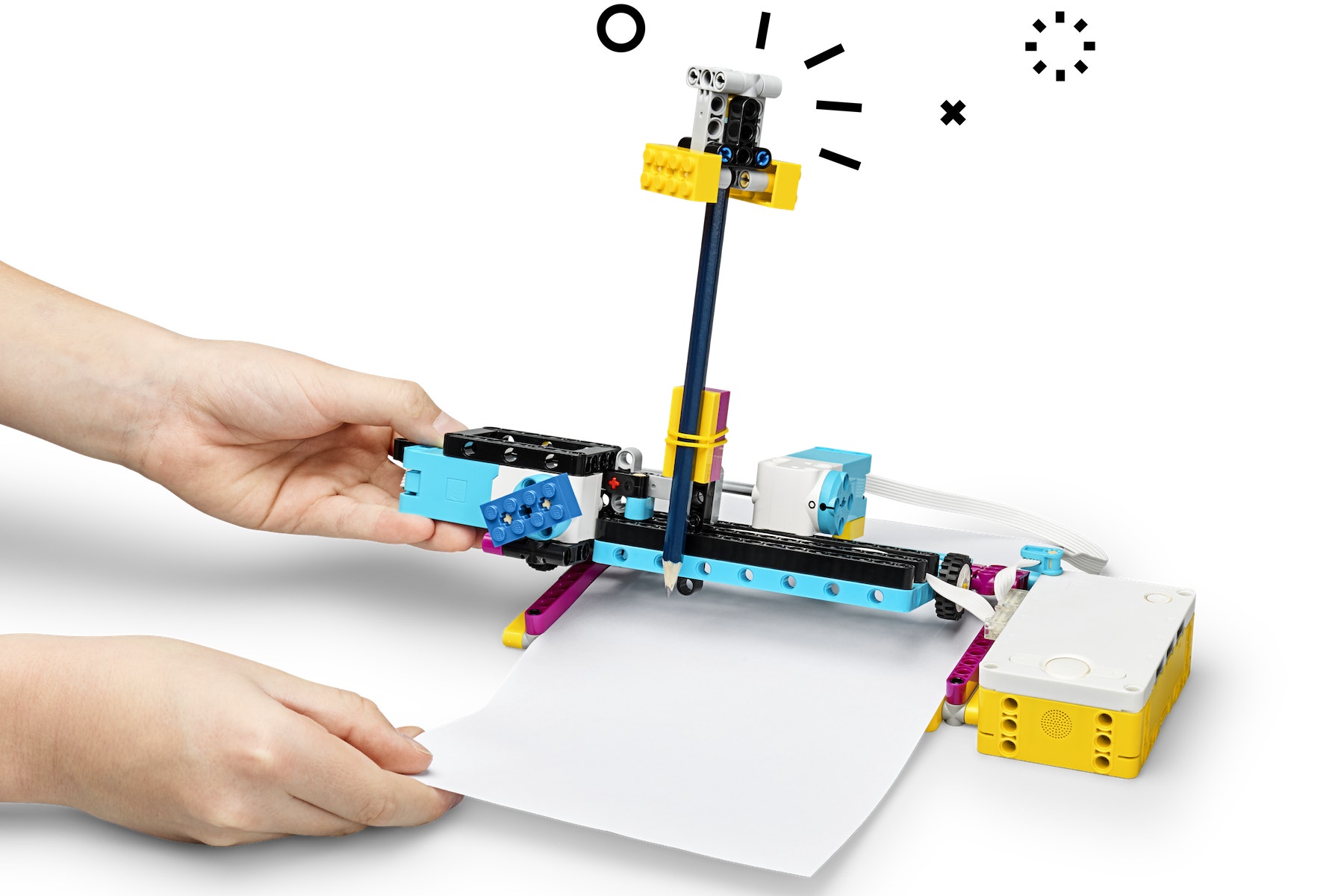

Loading the Paper
Here's how you load the paper:

teacher-loading-paper

Looking for Issues
The CNC machine model has 4 real issues that must be fixed in order for the program to work as intended:

  1. A paper feeder wheel is missing, causing the Y axis to not work properly.
  2. The top of the CNC machine isn't correctly attached to the bottom.
  3. The paper feeder gears are inverted, causing the paper to enter the CNC too quickly.
  4. The pencil carriage isn't affixed, causing the X axis to work improperly.
teacher-question

Easy Fixes
Here's the easiest way to fix these issues, though keep in mind that the objective of this lesson is for your students to find their own solutions.

teacher-solution

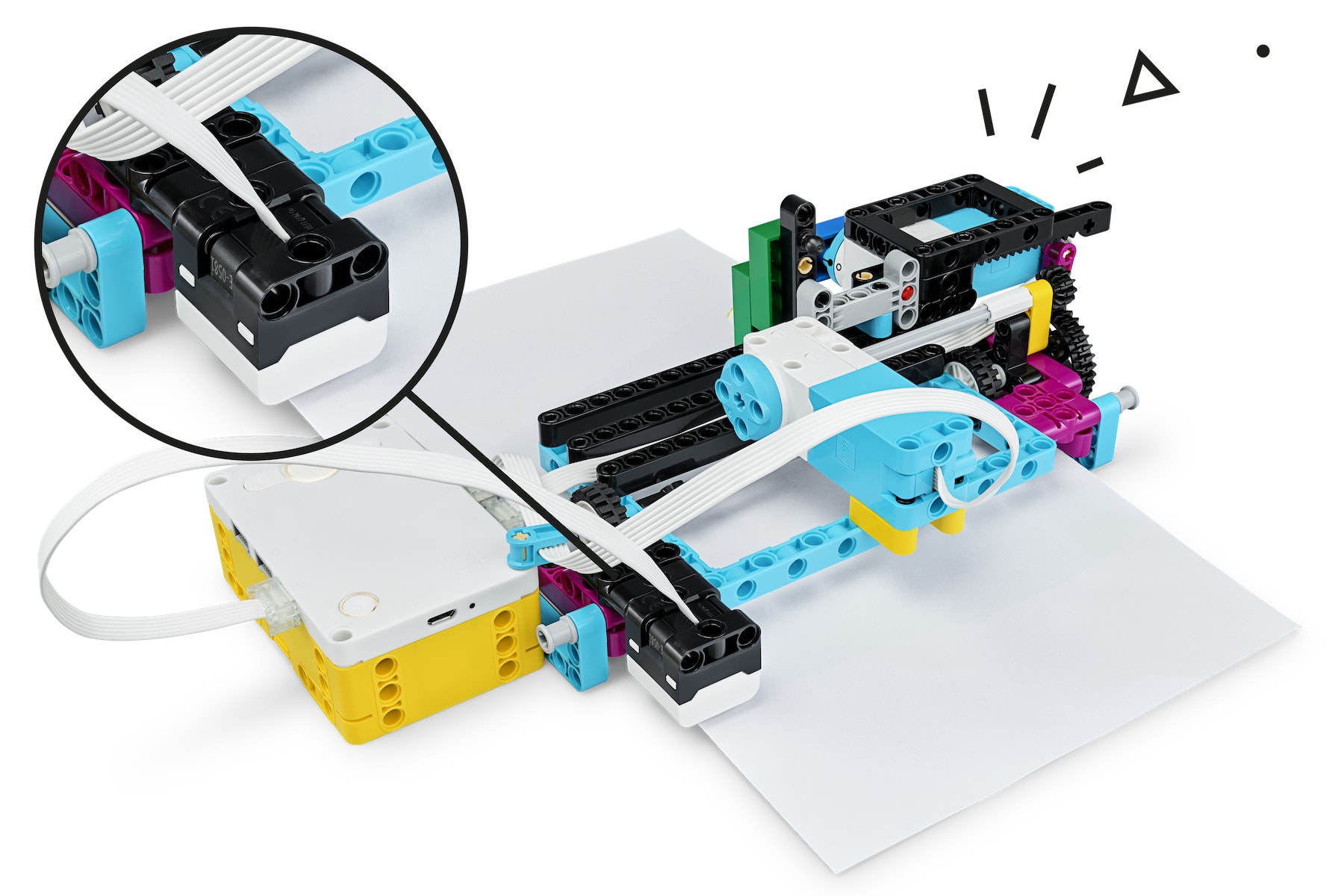

Possible Upgrade
Your students can upgrade their CNC machines by adding a Color Sensor.

teacher-improve

Coding Tips

Main Program

SPIKE Invention-Squad Broken Step03-Program en-au

Possible Solution

SPIKE Invention-Squad Broken Teacher Solution en-au

Differentiation

Simplify this lesson by:

  • Suggesting a selection of bricks your students can use to fix the issues
  • Asking all of the teams to work on the same upgrade so it's easier to assess the improvements

Take this lesson to the next level by:

  • Having your students draw complex shapes on the printer, including curves
  • Having your students transform this model into a 3D printer by adding a Z axis

Assessment Opportunities

Teacher Observation Checklist
Create a scale that matches your needs, for example:

  1. Partially accomplished
  2. Fully accomplished
  3. Overachieved

Use the following success criteria to evaluate your students' progress:

  • Students can describe the function of an object.
  • Students can describe the benefit of an object's features against needs.
  • Students can construct effective arguments.

Self-Assessment

Have each student choose the brick that they feel best represents their performance.

  • Blue: I can describe how things work
  • Yellow: I can describe in detail how things work and I can highlight what it's good at.
  • Violet: I can convince someone that I've invented the coolest thing in the world.

Peer-Assessment
Encourage your pupils to provide feedback to one another by:

  • Having one pupil use the coloured brick scale above to score another pupil’s performance
  • Asking them to present constructive feedback to one another so that they can improve their group’s performance during the next lesson
student-06

Language Arts Extension

To incorporate language arts skills development:

  • Have your students work hands-off to role-play calling a customer support line.

    ▷ One student describes the problem.
    ▷ The other student explains how to fix it.

Note: This will make for a longer lesson.

Math Extension

To incorporate math skills development:

  • Have your students find the gear ratio of the paper feed.
  • Ask them to use appropriate language to describe how it controls the speed of the paper entering the CNC.
  • Have them explain (and try!) what would happen if the gears were swapped.

Note: This will make for a longer lesson.

Students who enjoyed this lesson might be interested in exploring these careers pathways:

  • Business And Finance (Entrepreneurship)
  • Education And Training (Teaching)
  • Media And Communication Arts (Broadcast Technology)

Teacher Support

Students will:

  • Evaluate the performance of a design solution
  • Iterate to find problems, then fix them

LEGO® Education SPIKE Prime Set
Pencils

Australian Curriculum: Technologies
ACTDIK014
Examine the main components of common digital systems and how they may connect together to form networks to transmit data
ACTDIP016
Acquire, store and validate different types of data, and use a range of software to interpret and visualise data to create information
ACTDIP017
Define problems in terms of data and functional requirements drawing on previously solved problems
ACTDIP019
Design, modify and follow simple algorithms involving sequences of steps, branching, and iteration (repetition)
ACTDIP020
Implement digital solutions as simple visual programs involving branching, iteration (repetition), and user input

Student Material

Download, view or share the student worksheet, either as an online HTML page or a printable PDF
