Matter
Maria notices that when she opens the window, her papers blow around the room. How does that happen?
Prepare
*(NOTE: This lesson contains a Part A and a Part B. Both are important to access the full learning of the curriculum. If time is limited, review both parts to choose elements that meet your students needs.)
In this lesson, students will build a fan, using the example image(s) for inspiration. Encourage them to design and build their own idea for a fan.
- Science Background - Matter:
- Matter refers to the substances from which objects are created.
- Matter has mass and takes up space in solid, liquid or gas form.
- Build students' prior knowledge - Matter: Using your core science materials, share information, images and definitions.
- Wind is moving air. Air, like all matter, is made up of physical particles too small to see. (Note that students do not need to know about molecules or the types of gases that make up air.)
- Key vocabulary: matter, air, particle
- Building and Programming Experience: Review the suggestions in the Unit Plan. For this lesson, you may also want to:
- Reinforce with the Motor tutorial in the SPIKE App Start menu.
- Use the Event and Sensor Blocks sections of the Help>Word Blocks menu in the SPIKE App to provide more support.
- Materials: Make paper towers with these steps: 1) Cut each sheet of copy paper lengthwise in thirds. 2) For each one-third sheet created, fold both long sides to form a bracket shape. 3) Confirm that the paper stands upright when undisturbed and falls over with a light breeze (see template). If you wish, have students create their own paper towers during the lesson.
PART A (45 minutes)
Engage
(Whole Class, 10 minutes)
Introduce the story’s main character(s) and the first challenge: Maria notices that when she opens the window, her papers blow around the room. How does that happen?
THINK – Facilitate a brief discussion about the lesson topic(s)
- What is air? Is it just empty space? (No, air is made up of particles too small to see.)
- What evidence do you have from everyday life that air is not just empty space? (Examples will vary. Students may mention inflating balloons or tires, breathing in and out, feeling the wind blow, etc.)
Distribute a LEGO® Education SPIKE™ Essential Set and device to each group.
Explore
(Small Groups, 25 minutes)
As students work, consider sharing the examples below as support for building and programming. Clarify that the images show one idea and students should design and build their own fan idea.
Have students:
- Use the base model to BUILD a fan that can make a breeze to blow over a paper tower.
- PROGRAM their model to make the fan blades spin, starting with a speed of 100%. They can test and observe the effect of the fan’s performance by positioning the paper tower 1) in the front, 2) at one side or 3) at different distances from the fan.
- Test if their model can knock over the paper tower.
- Redesign and retest as necessary.
Facilitate brainstorming about ways to use LEGO elements to create effective fan blades that blow over the paper tower.
Halfway through work time, have students exchange ideas using a familiar classroom routine and then update their models with inspiration from sharing.
Example Ideas
Explain
(Whole Class, 10 minutes)
Gather students for sharing.
Have each group use their model to demonstrate and explain how their fan:
- Is able to move air particles.
- Can blow over a paper tower without touching it.
Invite students to share how they updated their model to improve its performance.
If you wish to continue to Part B – Explain, have students keep their models intact or allow time for rebuilding.
PART B (45 minutes)
Explain
(Whole Class, 10 minutes)
- Repeat the steps from Part A – Explain to have additional groups demonstrate and explain their learning.
Elaborate
(Whole Class, 30 minutes)

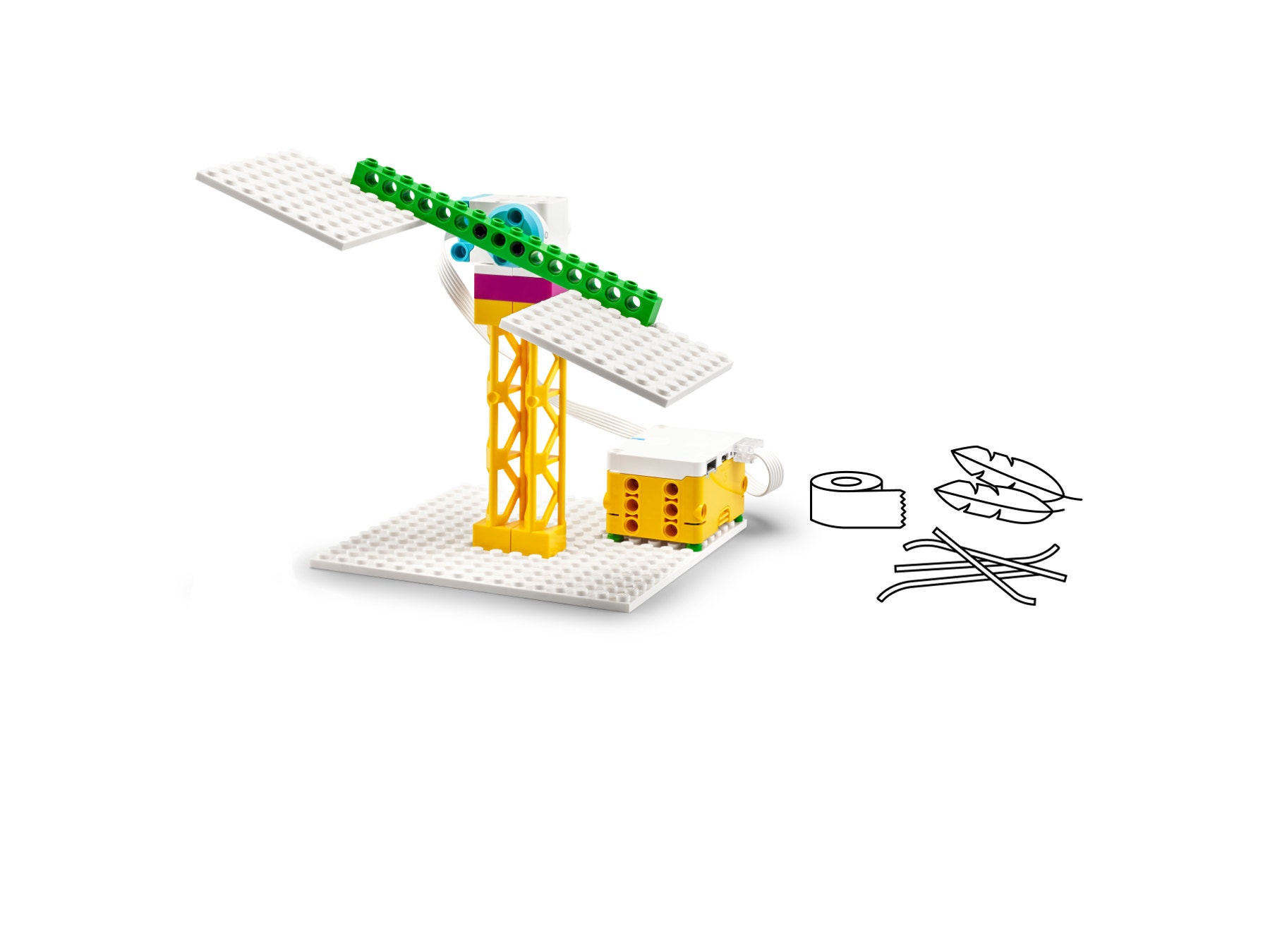

(5 min) Share background to help students Elaborate: Cardboard or other materials might make more effective fan blades than LEGO pieces because they can push more air.
(20 min) Have your students iterate and test their models to complete the next challenge in the app: Use cardboard or other materials to design a better fan blade. Test your fan again. What happens?
(5 min) Invite students to share knowledge, ideas or skills that:
- Helped them complete the challenge or what they learned while building.
Have students clean up the sets and work areas.
Evaluate
(Whole Class, 5 minutes)
- Ask guiding questions to elicit students’ thinking and their decisions while ideating, building and programming.
Observation Checklist
- Review the learning objectives (Teacher Support box).
- Use the checklist to observe students’ progress:
- Their fan can blow over a paper tower a short distance away.
- Their explanation demonstrates that air particles blown by the fan have pushed the paper over, even though the particles are too small to see.
Self-Assessment
Have each student choose the brick that they feel best represents their performance。
- Blue brick: I think I can follow instructions to create a program.
- Yellow brick: I can follow instructions to create a program.
- Green brick: I can follow instructions to create a program and I can help a friend do it too.
Peer Feedback
In their small groups, have your students discuss their experiences working together.
Encourage them to use statements like these:
- I liked it when you…
- I’d like to hear more about how you…
Differentiation
Simplify this lesson by:
- Stopping after the first challenge: Build a fan model that shows air particles can knock over a paper tower. Ask students yes/no questions to elicit their explanation.
Increase the difficulty by: - Having students investigate and compare the effects of different motor speeds, e.g., the default of 75% against the max of 100%. Ask them to draw and label a diagram to explain how air and other particles of matter are affected.
Extension
- Provide learning materials about the Beaufort scale, which is used to measure the force of wind. Have students produce an editorial or advertisement for the Beaufort scale explaining why it is useful to have a scale to measure wind rather than using people’s subjective impressions.
If facilitated, this will extend beyond the 45-minute lesson.
Teacher Support
Students will:
- Develop a motorised fan that is able to blow over a paper tower a short distance away.
- Explain that although air particles are too small to see, they are pushed by the fan against the paper to knock it over.
(one for every two students)
- LEGO® Education SPIKE™ Essential Set
- Device with the LEGO Education SPIKE App installed
- See Prepare - Materials
ACSSU031 ACTDEP005 ACTDEP013 ACTDIP011 ACELY1646 ACELY1676 ACELY1671 ACELY1682
Science (Chemical Sciences)
Years 1-4 Exploring Materials:
For Year 2: ACSSU033: "Different materials can be combined for a particular purpose."
Technologies (Design and Technologies)
Years 1-4 Processes and Production Skills:
For Years 1-2: ACTDEP005: "Explore needs or opportunities for designing, and the technologies needed to realise designed solutions."
For Years 3-4: ACTDEP013: "Investigate the suitability of materials, systems, components, tools, and equipment for a range of purposes."
Technologies (Digital Technologies)
Years 1-4 Digital Technologies Processes and Production Skills:
For Years 3-4: ACTDIP011: "Implement simple digital solutions as visual programs with algorithms involving branching (decisions) and user input."
English (Literacy)
Years 1-4 Speaking and Listening:
For Year 1: ACELY1646: "Listen to and respond orally to texts and to the communication of others in informal and structured classroom situations."
For Year 3: ACELY1676: "Listen to and contribute to conversations and discussions to share information and ideas and negotiate in collaborative situations."
English (Literacy - Language Arts Extension)
Years 1-4 Creating Texts:
For Year 1: ACELY1671: "Identify the audience and purpose of imaginative, informative and persuasive texts."
For Year 3: ACELY1682: "Plan, draft and publish imaginative, informative and persuasive texts demonstrating increasing control over text structures and language features and selecting print,and multimodal elements appropriate to the audience and purpose."
