MINDSTORMS® EV3 Core Set

Activate Communications

Design, build, and program a robot that can navigate to the satellite dish and then push on it until it’s fully upright.

90-120 min.
Intermed.
Grades 6-8
lesson-header-3-2

Lesson plan

1. Prepare

  • Read through the student material in the EV3 Classroom App.
  • Collect some information about satellite dishes and how they’re used in deep space communication.
  • If you feel it’s needed, plan a few lessons to go through the Robot Trainer unit in the app. This will help familiarize your students with LEGO® MINDSTORMS® Education EV3.
  • To complete this lesson, your students will have to have built the eight Space Challenge models and set up the Challenge Mat.
  • If you don’t have double-block class time, plan to run this lesson over multiple sessions.

Part A

2. Engage (10 Min.)

  • Use the ideas in the Ignite a Discussion section below to engage your students in a discussion related to this mission.
  • Explain the objective, rules, and achievement badges for this mission.
  • Split your class into teams.

3. Explore (25 Min.)

  • Have your students brainstorm ideas for solving this mission.
  • Encourage them to create multiple prototypes, exploring both building and programming.
  • Allow the teams some time to work independently on building and testing their solutions.

4. Explain (10 Min.)

  • Facilitate a discussion about the key functionalities the robot must have in order to navigate to the Communications Station and push the satellite dish into an upright position.

Part B

5. Elaborate (45 Min.)

  • Have each team practice lining up their robot and sending it on the mission to activate the Communications Station.
  • Let them continue working on their robots until they’re ready for a judged attempt.
  • Don’t forget to leave some time for cleanup.

6. Evaluate

  • Award achievement badges based on how well each team solved the mission.
  • Evaluate the creativity of each team’s solution and how well their team worked together.
  • You can use the assessment rubrics provided to simplify the process.

Ignite a Discussion

Satellite dishes are a type of antenna that uses radio waves to receive or transmit data. On a human mission to Mars, they’d be used to transmit messages between Earth and Mars. Radio waves travel at the speed of light, and because the distance between Earth and Mars is variable, there’s an approximate delay of between four and twenty-four minutes in communication between the planets.

engage-3-2

Use these questions to engage your students in a discussion about how satellite dishes can be used in deep space communication:

  • What’s a satellite dish?
  • How are satellite dishes used in deep space communication?

Mission Goal
The robot navigates to the satellite dish and then pushes on it until it’s fully upright.

Here’s an example mission solution that completes this mission:

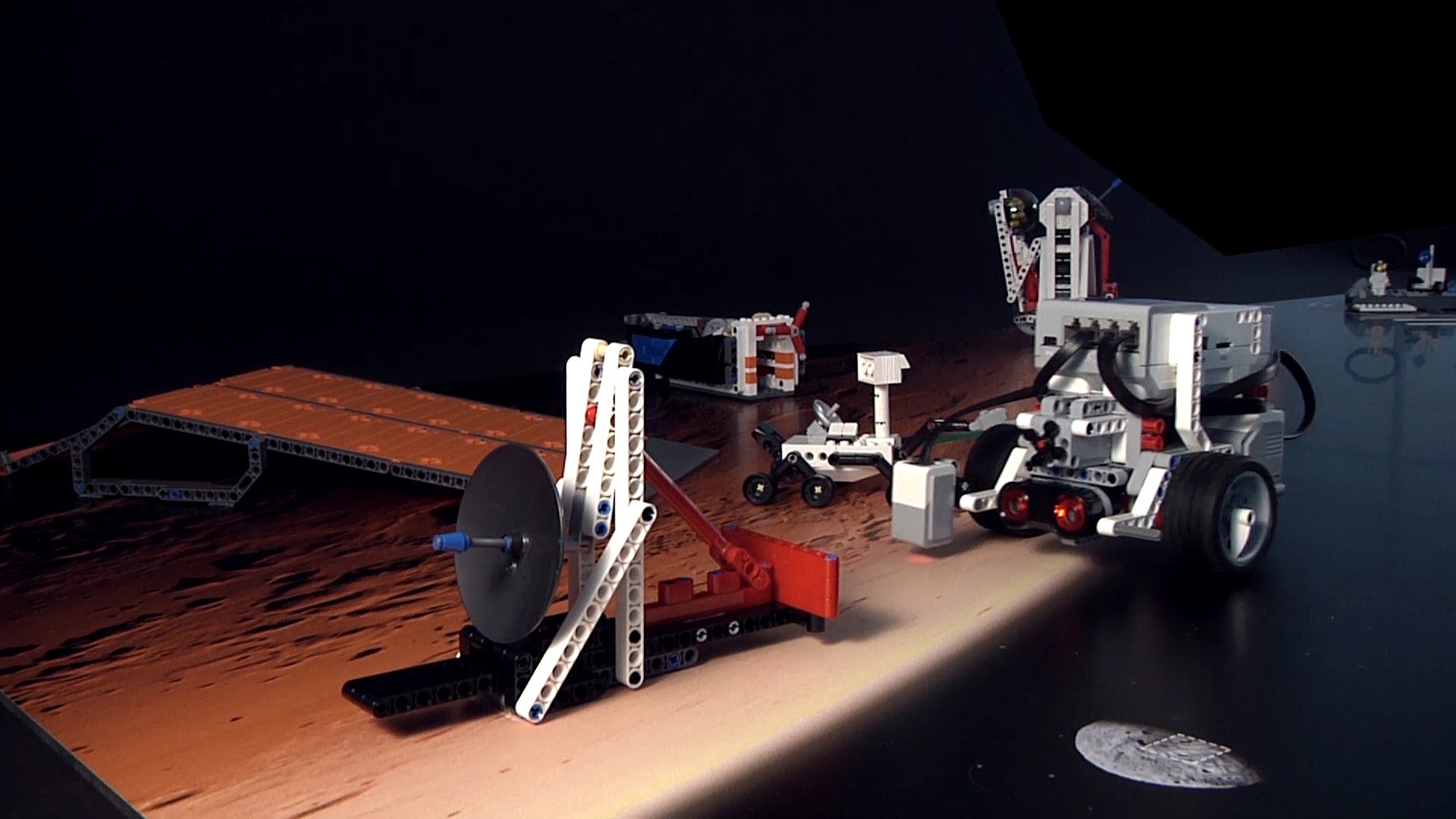

MCR-SV-3-1-Activate-Communications-Cover

Mission Rules
There are five rules that apply to all of the Space Challenge missions. Make sure your students know all of them before they start:

  • Your robot must always start the mission from the base area.
  • Your robot must leave the base area before carrying out the mission.
  • A “successful robot return” occurs when any part of the robot crosses over any part of the base area line.
  • You’re not allowed to touch your robot while it’s outside of the base area.
  • If you touch your robot while it’s completely outside of the base area and it’s holding an object, the object must be returned to its original position and you must begin the mission again.

Mission Achievement Badges
There are four levels of achievement badges. Explain that each team will be awarded an achievement badge based on how well they accomplish the mission. Refer to the Assessment Opportunities section below for a description of the achievement badges for this mission.

Building Tips

Open-Ended Solutions
This project is designed so that every team can have a unique solution. Use these questions to help teams brainstorm ideas for solving this mission:

  • What are some ways the robot could navigate to the Communications Station?
  • Can you think of some ways the robot could push the satellite dish carefully and accurately into an upright position?

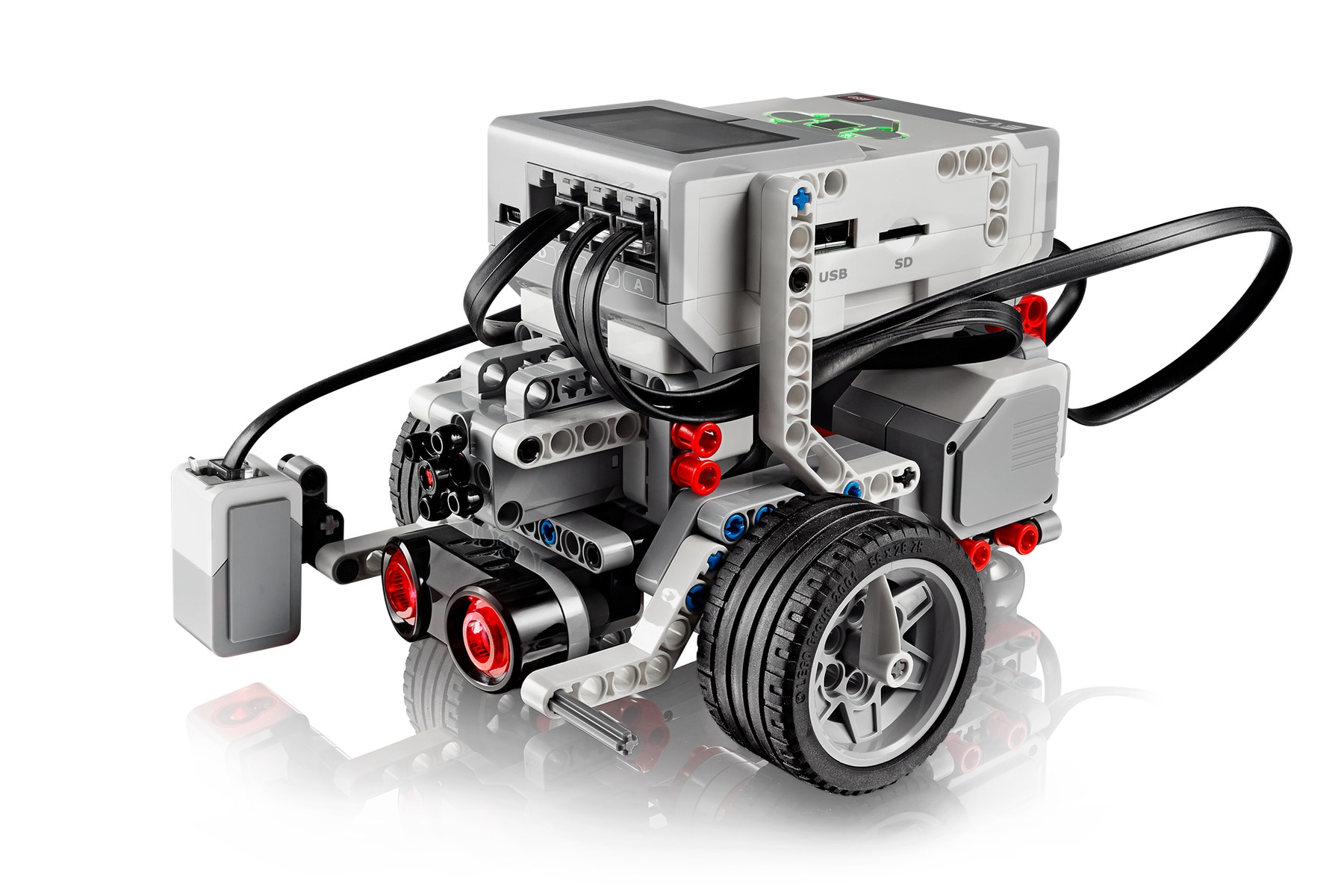

solution-3-2

Example Mission Solution
The example mission solution is comprised of the following solution extensions:

PDF-3-2-Solution-Cover

Execute the Mission
Reset the Communications Station, place the example solution model in starting position “1” on the Challenge Mat, and execute the mission.

MCR-SV-3-1-Activate-Communications-Cover

Mission Troubleshooting
To avoid pushing on the satellite dish too much, use the Ultrasonic Sensor to detect the red wall of beams. Use the Color Sensor in Reflected Light Intensity Mode to detect where the robot is on the Challenge Mat. If the Color Sensor doesn’t detect changes in color on the Challenge Mat, try calibrating the sensor.

Coding Tips

Solution Program

EV3 Classroom-Programs 3-2-solution en-us

Differentiation

Simplify this lesson by:

  • Working side-by-side with your students to figure out how to push the satellite dish up from a specified distance (i.e., instead of starting from the base area)
  • Having your students complete the Objects and Obstacles lesson in the Robot Trainer unit before attempting this mission
  • Encouraging peer-to-peer learning and coaching

Take this lesson to the next level by:

  • Randomly switching the position of the communication antenna and having the students create a program that responds to this variable
  • Limiting the amount of time the students have to solve the mission
  • Challenging the students to use both a Color Sensor and an Ultrasonic Sensor to solve this mission
  • Adding design constraints by limiting the number of LEGO® elements available or assigning a “price” to each type of LEGO element and a maximum “cost” per robot

Assessment Opportunities

Teacher Observation Checklist
Create a scale that matches your needs, for example:

  1. Partially accomplished
  2. Fully accomplished
  3. Overachieved

Use the following success criteria to evaluate your students’ progress:

  • Students designed a robot that meets the requirements of the mission.
  • Students came up with creative solutions and considered multiple solutions.
  • Students worked together as a team to complete the mission.

Achievement Badges
Award an achievement badge based on how well the team solved the challenge mission.

  • Bronze: The robot went out and pushed on the satellite dish, but the satellite dish didn’t stay upright because the robot pushed too much or not enough.
  • Silver: The satellite dish stayed upright but at a lower position because the robot didn’t push hard enough.
  • Gold: The satellite dish stayed upright.
  • Platinum: The satellite dish stayed upright and the team also went beyond the mission requirements by adding features to their design.
assessment-row-space

Self-Assessment
Have each student choose the achievement badge that they feel best represents their performance.

  • Bronze: We did the best we could under difficult circumstances.
  • Silver: We had a few accidents along the way but we still battled on to the end of the mission.
  • Gold: We’ve accomplished the mission with excellent results.
  • Platinum: We’ve not only completed the mission but also added original and effective features to our design.

Language Arts Extension

To integrate language arts skills development, have your students:

  • Create a presentation or a video highlighting their robot’s features and performance
  • Create a presentation explaining some important features of their program

Note: This will make for a longer lesson.

Students who enjoyed this lesson might be interested in exploring these career pathways:

  • Information Technology (Computer Programming)
  • Manufacturing and Engineering (Pre-Engineering)
  • Science, Technology, Engineering & Mathematics (Engineering and Technology)

Teacher Support

Students will:

  • Demonstrate their skills in solving a mission

NGSS
MS-ETS1-4
Develop a model to generate data for iterative testing and modification of a proposed object, tool, or process such that an optimal design can be achieved.

Common Core
CCSS.ELA-LITERACY.SL.7.1
Engage effectively in a range of collaborative discussions (one-on-one, in groups, and teacher-led) with diverse partners on grade 7 topics, texts, and issues, building on others’ ideas and expressing their own clearly.

ISTE
4B
Students select and use digital tools to plan and manage a design process that considers design constraints and calculated risks.

7C
Students contribute constructively to project teams, assuming various roles and responsibilities to work effectively toward a common goal.

Student Material

Student Worksheet

Download, view, or share as an online HTML page or a printable PDF.
