Crazy Floors

Explore and recognize that the turning ratio of one pulley to another is determined by the size of the pulleys.

Science Technology Engineering Math

LESSON PLAN

CONNECT (5-10 MINUTES)

Sam and Sally love going to the fair. There is a fun attraction where you have to have good balance. The floors are crazy! They move at different speeds of rotation and in different directions. It is fun turning and trying not to get dizzy or fall down.
Are you good at keeping your balance?
Have you ever seen floors move?
Which simple machine is needed for Crazy Floors to turn?

Let’s build Crazy Floors!

CONSTRUCT (10-15 MINUTES)

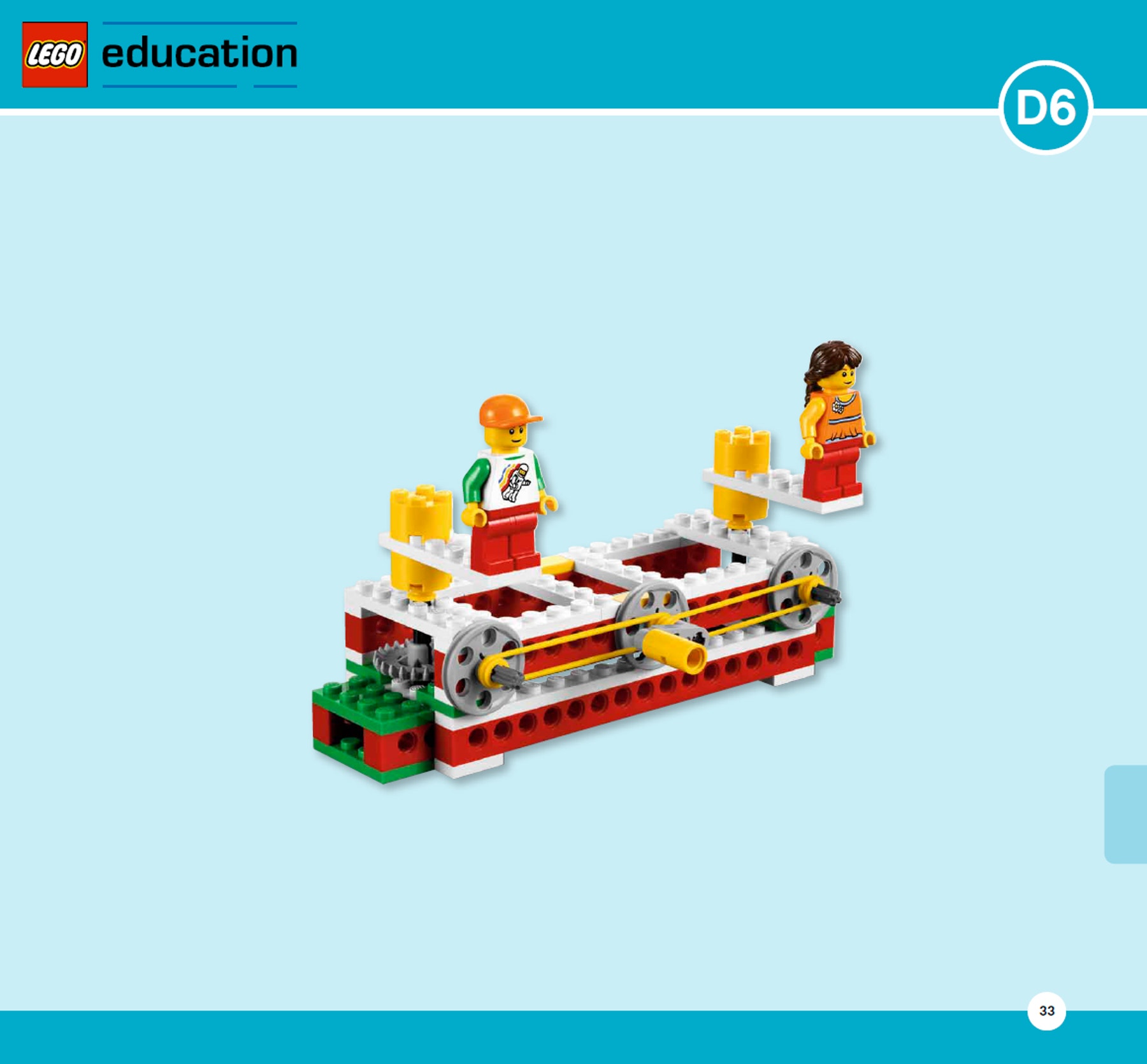

1. First, build Crazy Floors Model D6 and make it turn.
Follow Building Instructions D, pages 34 to 54, steps 1 to 22.

When Crazy Floors Model D6 has been built, check the following:
Crank the yellow handle to make the crazy floors turn.
Make sure Sam and Sally are attached securely.

Note
Make sure Sam and Sally are placed as shown on the model.

Hint
Students should be reminded that the drive wheel is the pulley turned by an outside effort, in this case your hand cranking the yellow handle.

CONTEMPLATE (10-15 MINUTES)

2. Count the number of pulley wheels on the model.

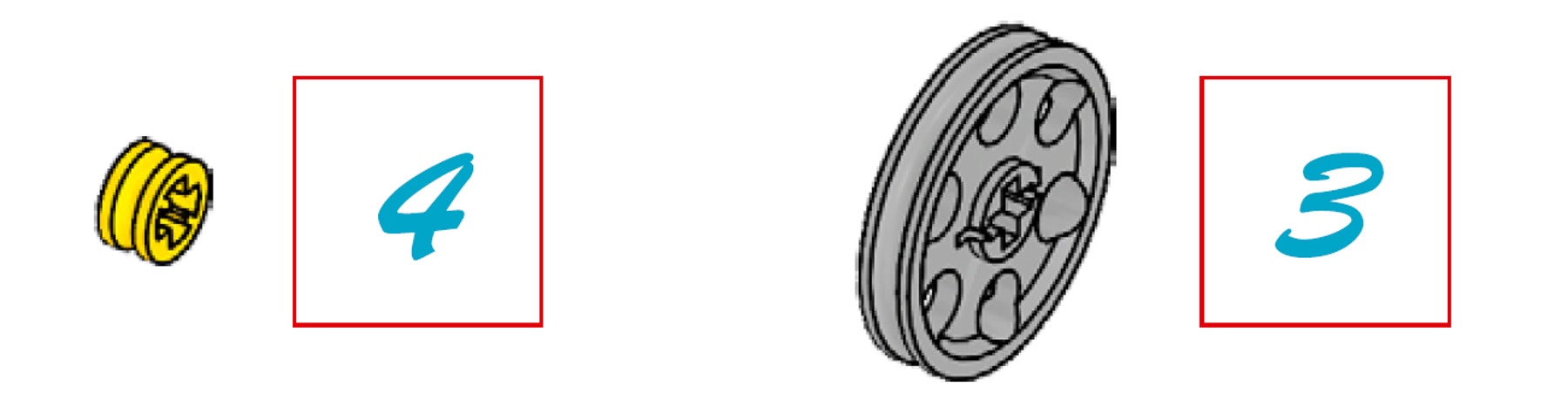

There are seven pulley wheels built into the model; three large gray pulley wheels and four small yellow pulley wheels.

3. Then look carefully at the pictures of the models and compare Crazy Floors Model D6 to Crazy Floors Model D7.
Circle what is different.
What do you notice? Explain how the models are different.
Students should notice the difference in the way the pulleys are arranged on model D6 compared to model D7.

4. Next, look carefully at the pictures of the models and make a prediction.
If I compare model D6 to model D7, then I think Crazy Floors Model (D6/D7) will show the larger difference in turning (speed of rotations) between Sam’s side and Sally’s side.
Encourage students to discuss the effects the different pulley arrangements have on the crazy floors in their own words. For the prediction, the correct answer is model D7, as it will show a difference in the speed of rotation of the crazy floors on each side of the model. Model D6 has a ratio of 1:1 and both sides of the model will move (turn) at the same speed. However, it does not matter whether students get the answer right or wrong at this point, only that they should make a prediction that can be checked later.

5. Test Crazy Floors Model D6.
If you want Sam or Sally to make a full turn, how many times must you crank the handle?
Have students observe the starting point of the handle and both Sam’s and Sally’s starting positions on the crazy floors. *Encourage them to try more than once, to ensure that their observations are correct. Students must write their answer in the blank box beside the handle.

The students will have to crank the handle approximately four times for Crazy Floors Model D6 to turn once, but due to slip answers may vary. If students have worked with the principle models for gears, they should be made aware that the angled gearing below the crazy floors enables the rotary motion to be transmitted through a 90-degree angle.*

Note
If possible, keep an example of Crazy Floors Model D6 for students to compare with Crazy Floors Model D7.

6. Build Crazy Floors Model D7 and make it turn.
Follow Building Instructions D, page 56, step 1.

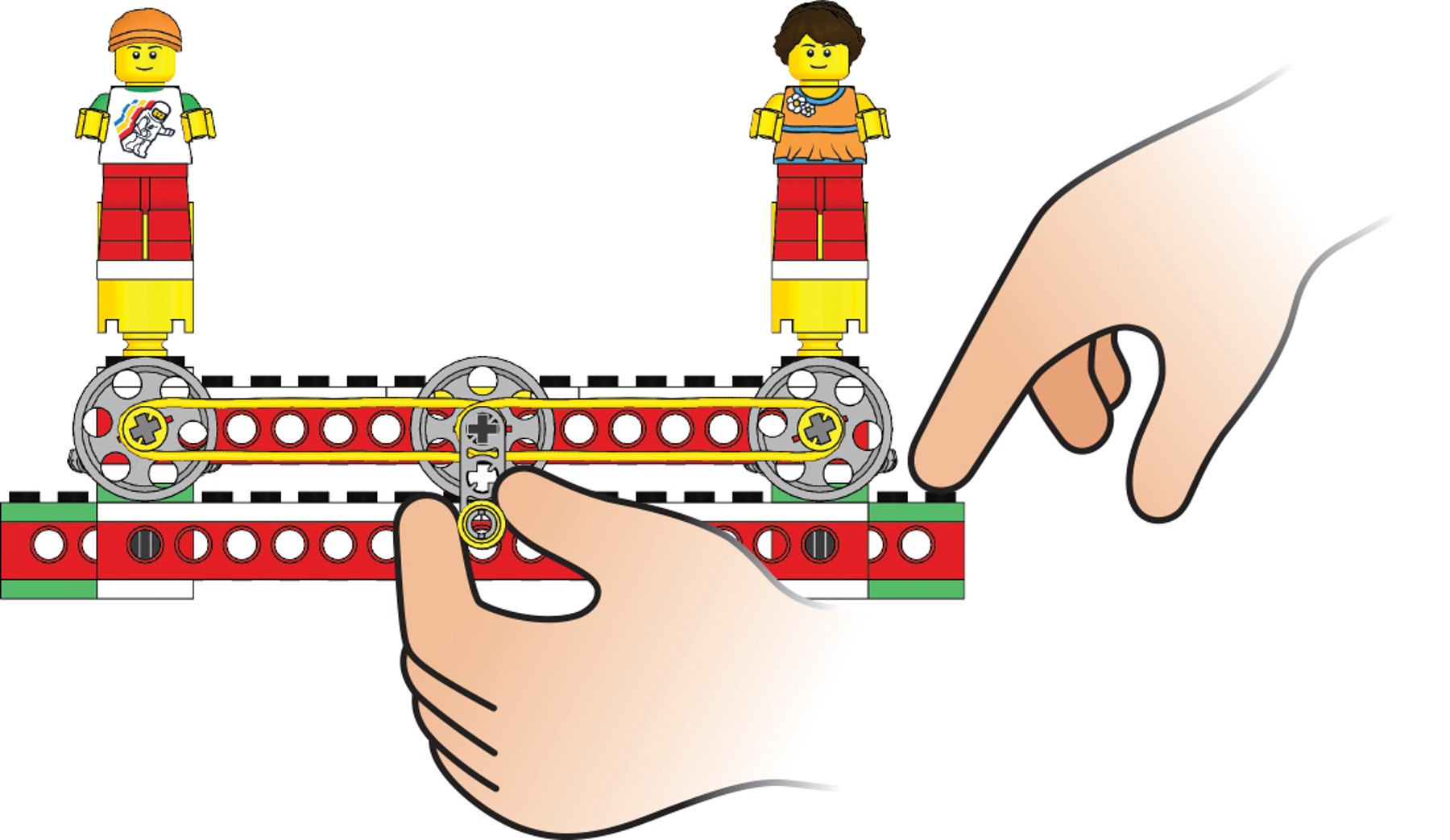

Gently grip one of the floor elements to stop it from turning, and you will feel the pulley belt slip.
Encourage students to identify parts while they are testing the model. Students can be made aware of “slip” (see Glossary) by gently gripping the floor element to prevent it from turning, as this causes the attached pulley belt to slip.

7. Test Crazy Floors Model D7.
Which side of Crazy Floors will move the fastest, Sam’s side or Sally’s side?
Have students pay attention to the starting positions of both the handle and the minifigures. Encourage them to try more than once, to ensure that their observations are correct. Students must write an F for fast and an S for slow. The different pulley arrangements produce different speeds of rotation for Sam and Sally. The drive wheel is attached to the handle, and there is thus a gearing up pulley arrangement to the side where Sam stands. Sam turns at a much faster pace (= F, for fast) than the gearing down pulley arrangement on the side where Sally stands, which turns at a much slower (= S, for slow) pace.

8. Finally, draw a conclusion and check your prediction.
Crazy Floors Model D7 has the larger difference in the speed of rotation of the crazy floors because of the different pulley arrangements.

9. Assessment
Students use the self-assessment rubric to evaluate their work. Each rubric includes four levels of achievement. The intention is to help students reflect on what they have done well and what they could have done better.

CONTINUE (10-15 MINUTES)

Students are encouraged to explore the pulley arrangements illustrated on the student worksheet and to record their observations.

Note
There are no building instructions included to guide students through the Continue phase, other than the illustrated suggestions on the student worksheet.
Encourage your students to discuss the effects the pulley arrangement will have on Crazy Floors in their own words, prompting them with questions such as:
Describe what happened when you turned the handle.
How many times did you have to turn the handle to make the crazy floors turn once? Why do you think that was?
Describe how the model works.
What did you do to make sure your observations were correct?
It is suggested that students should draw items where they find pulleys used in everyday machines and mechanisms.

Optional
With more advanced students, you might consider introducing compound belt drives. Pulley wheels of two different sizes on the same axle can be connected to other pulley wheels to build more extensive gearing down (and gearing up) arrangements.
